Mar 2021

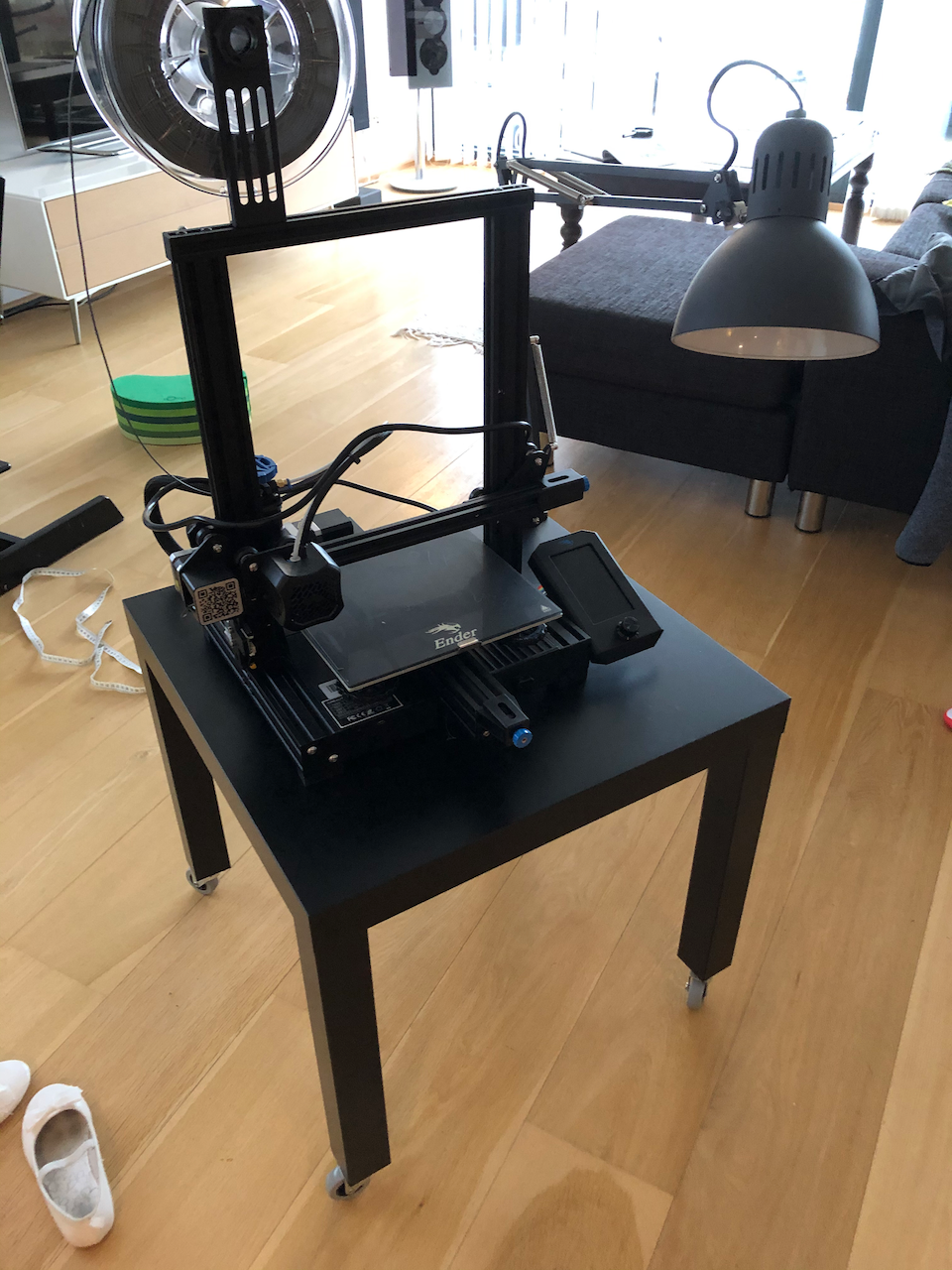

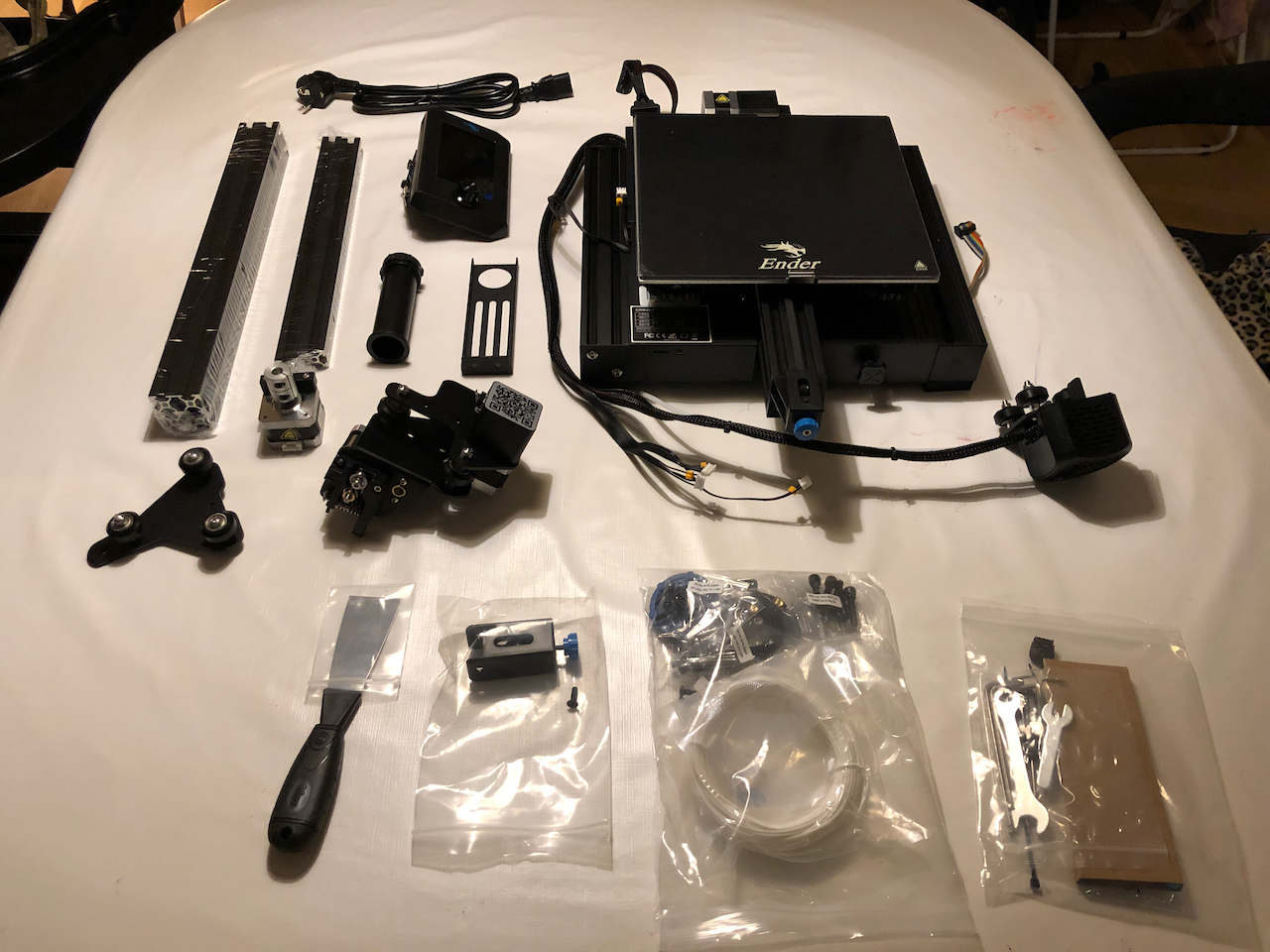

Wooops. I bought a 3D printer

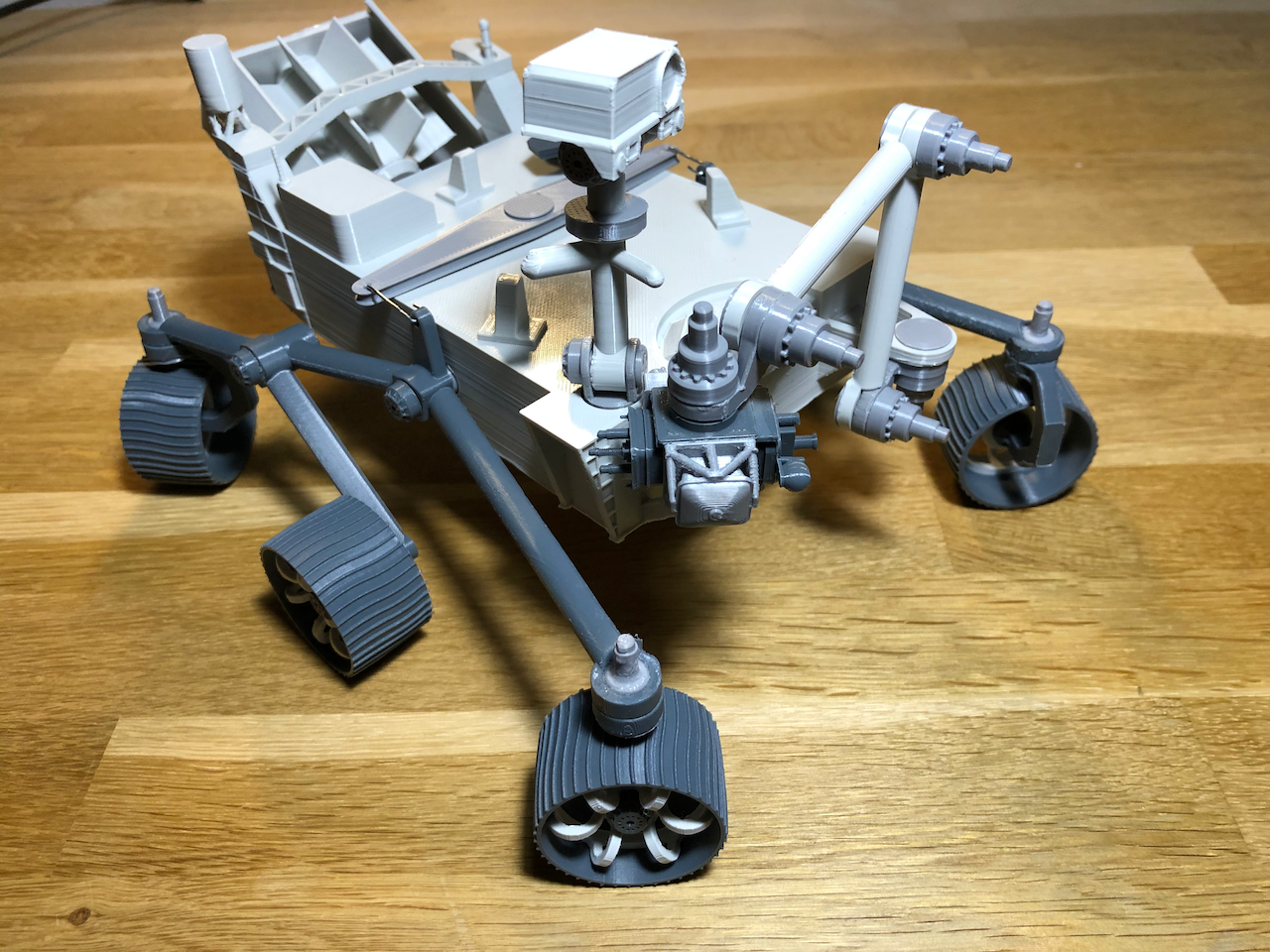

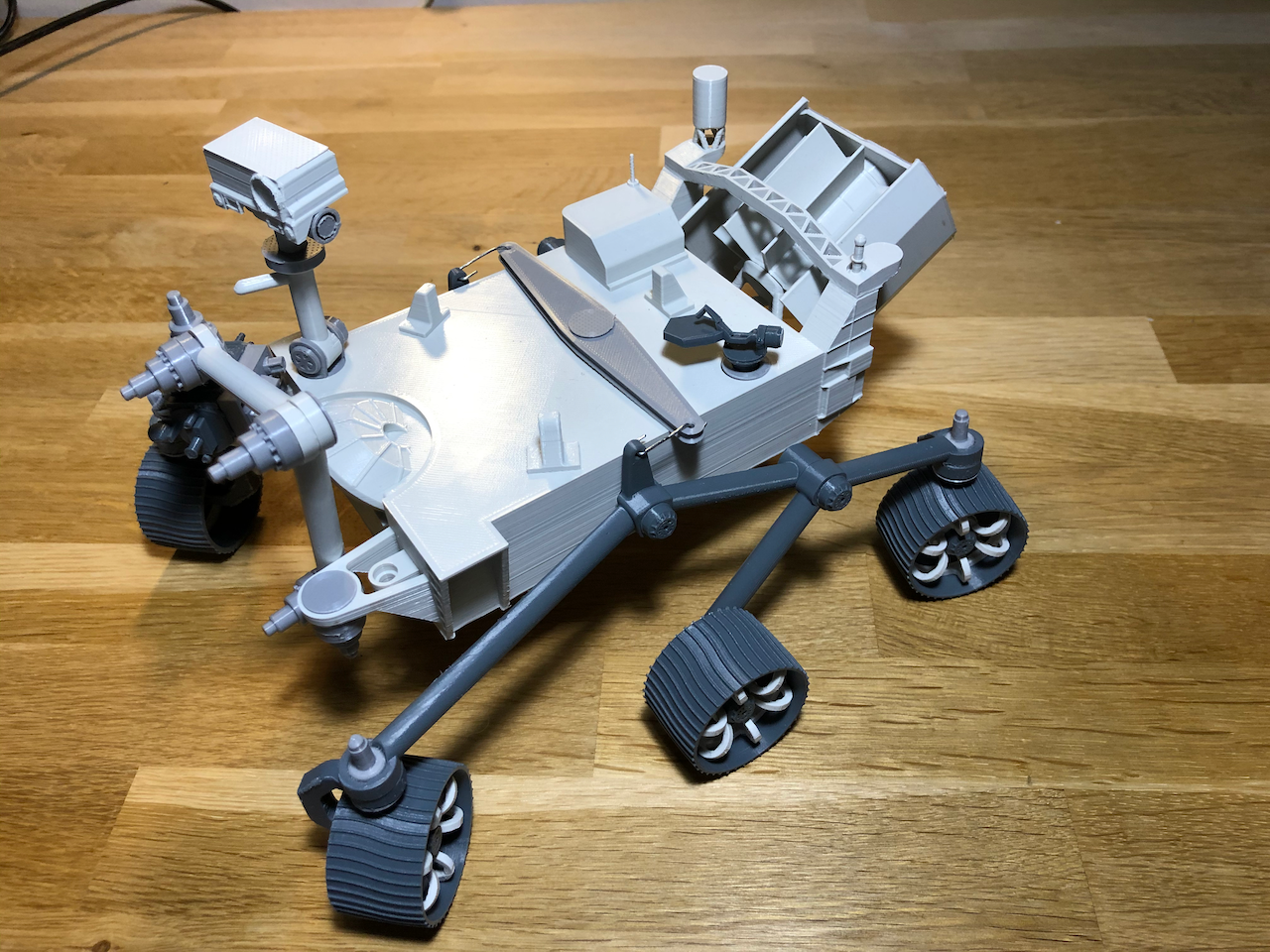

1:4 Scale Perseverance Model

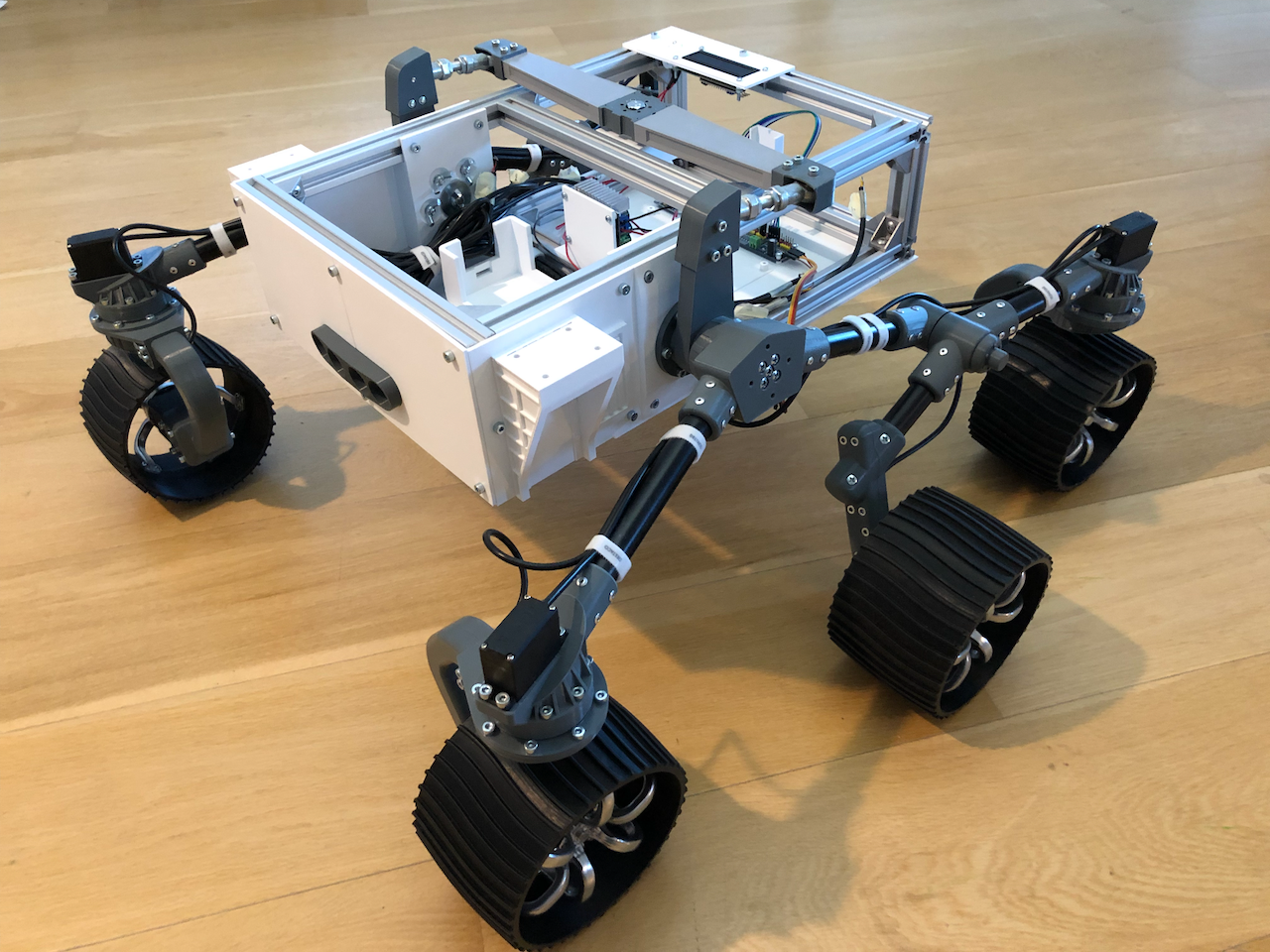

A 1:4 scale RC model of NASA's Perseverance Mars rover, started in 2021 as a COVID-19 isolation project. Designed in Fusion 360 and 3D-printed in PLA on a Creality Ender-3 V2, it features a fully functional rocker-bogie suspension system with six independently driven wheels. The electronics are built around an ESP32 with custom motor drivers, servo control, GPS, an IMU, and a radio controller — making it a fully remote-controlled miniature rover.
Build Log
Apr 2021

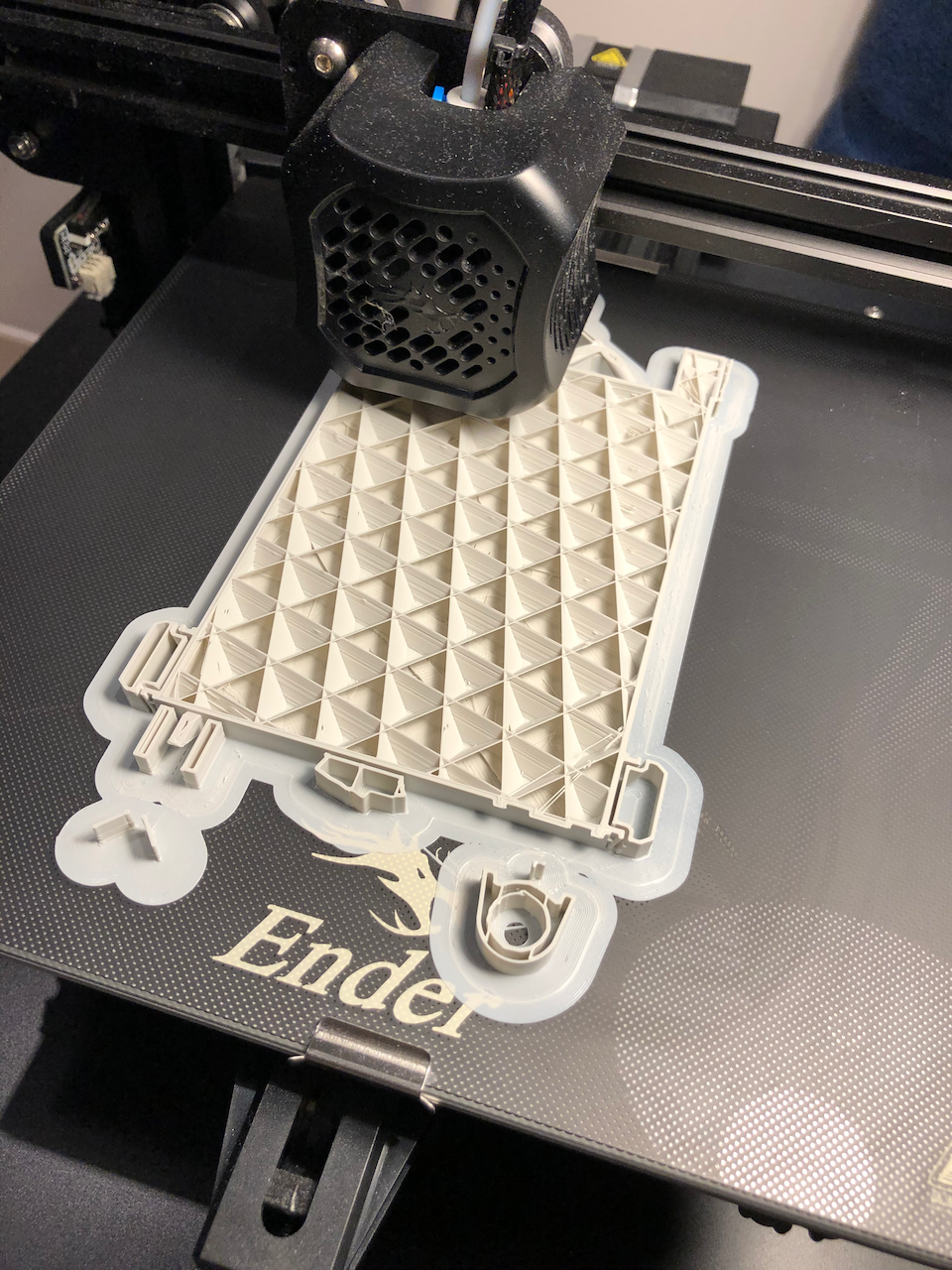

What to print?
Jul 2021

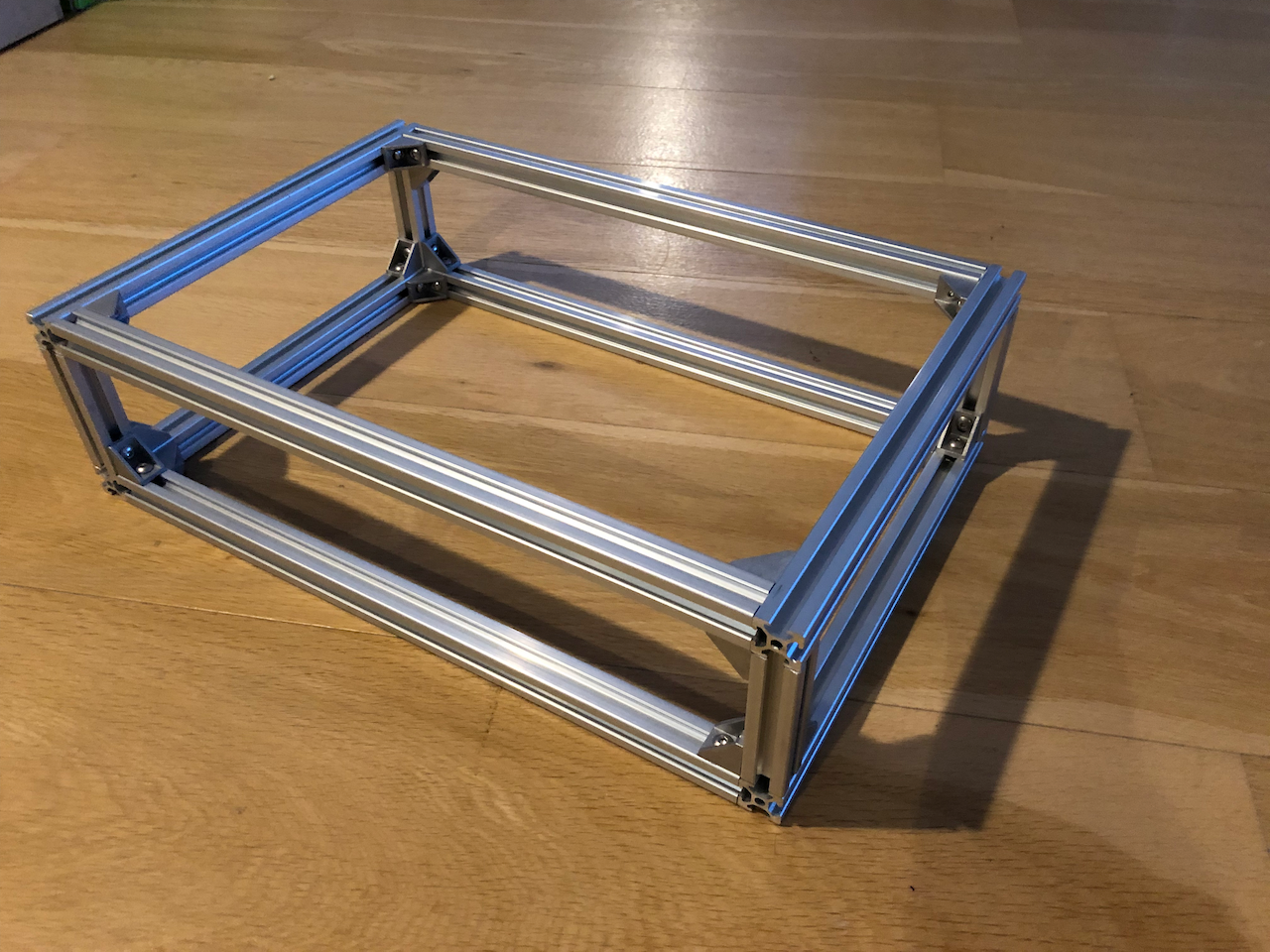

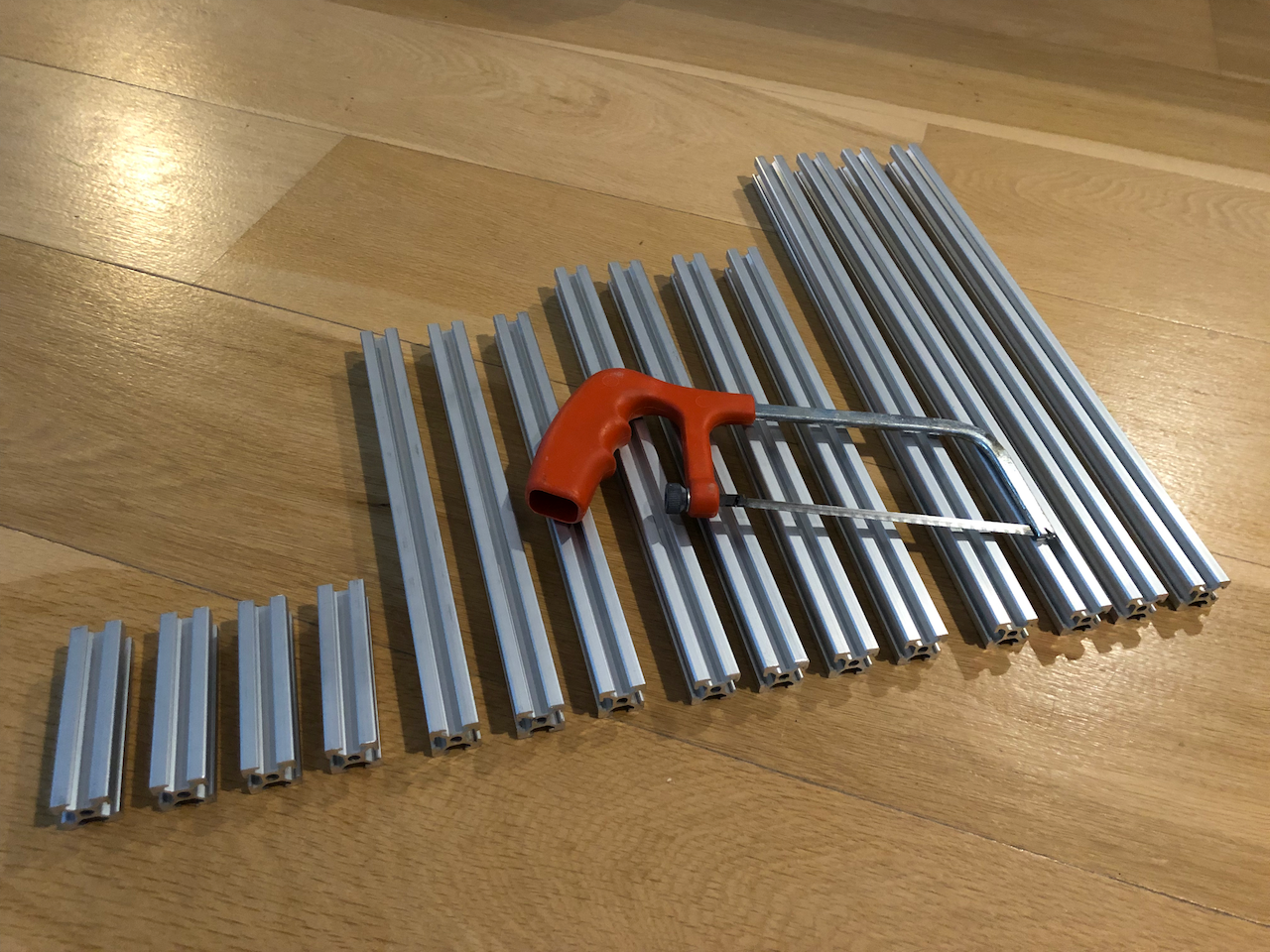

Frame
Aug 2021

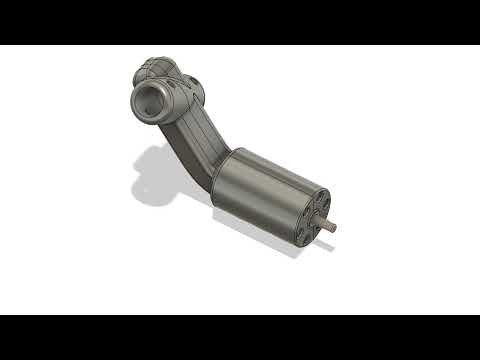

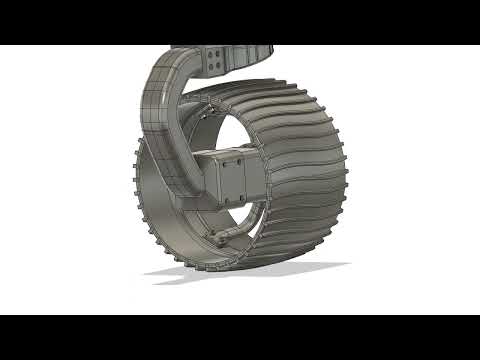

Design
Sep 2021

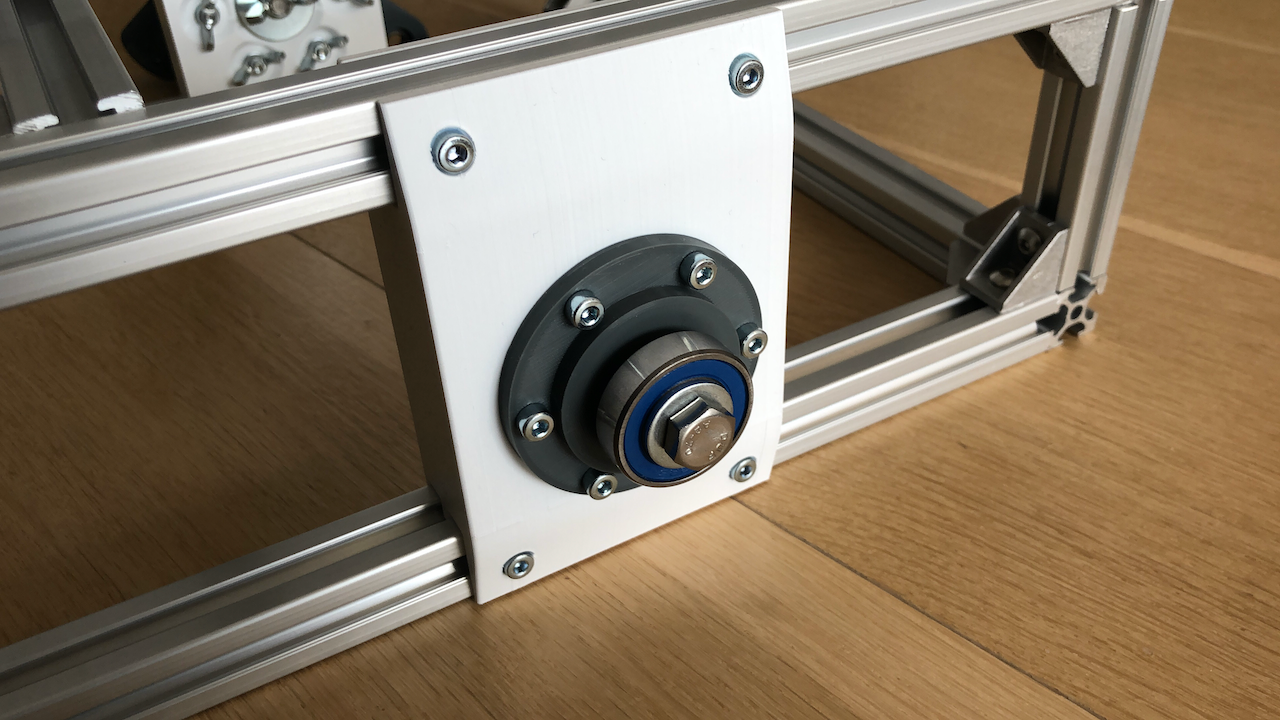

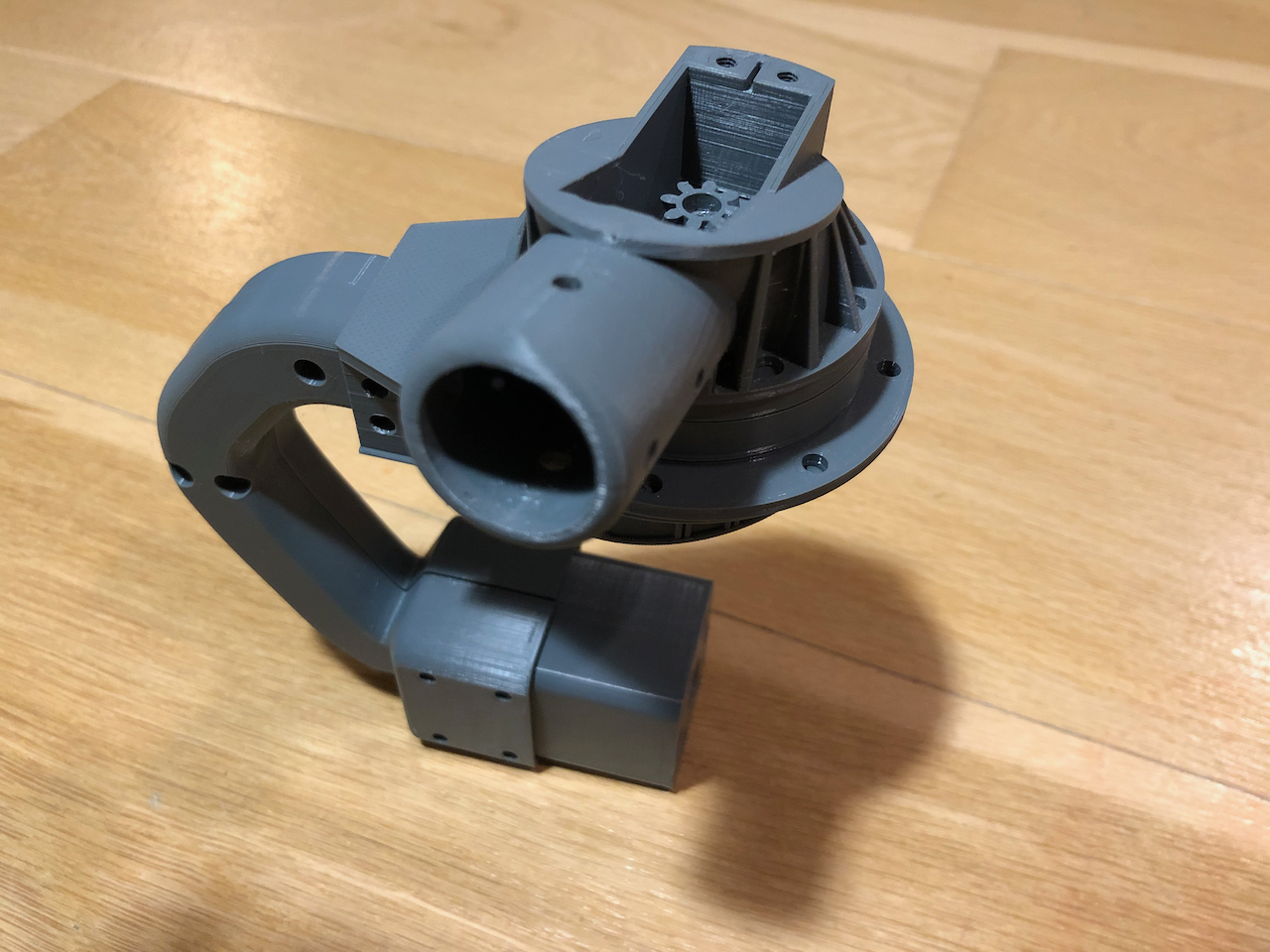

Wheel mount
Oct 2021

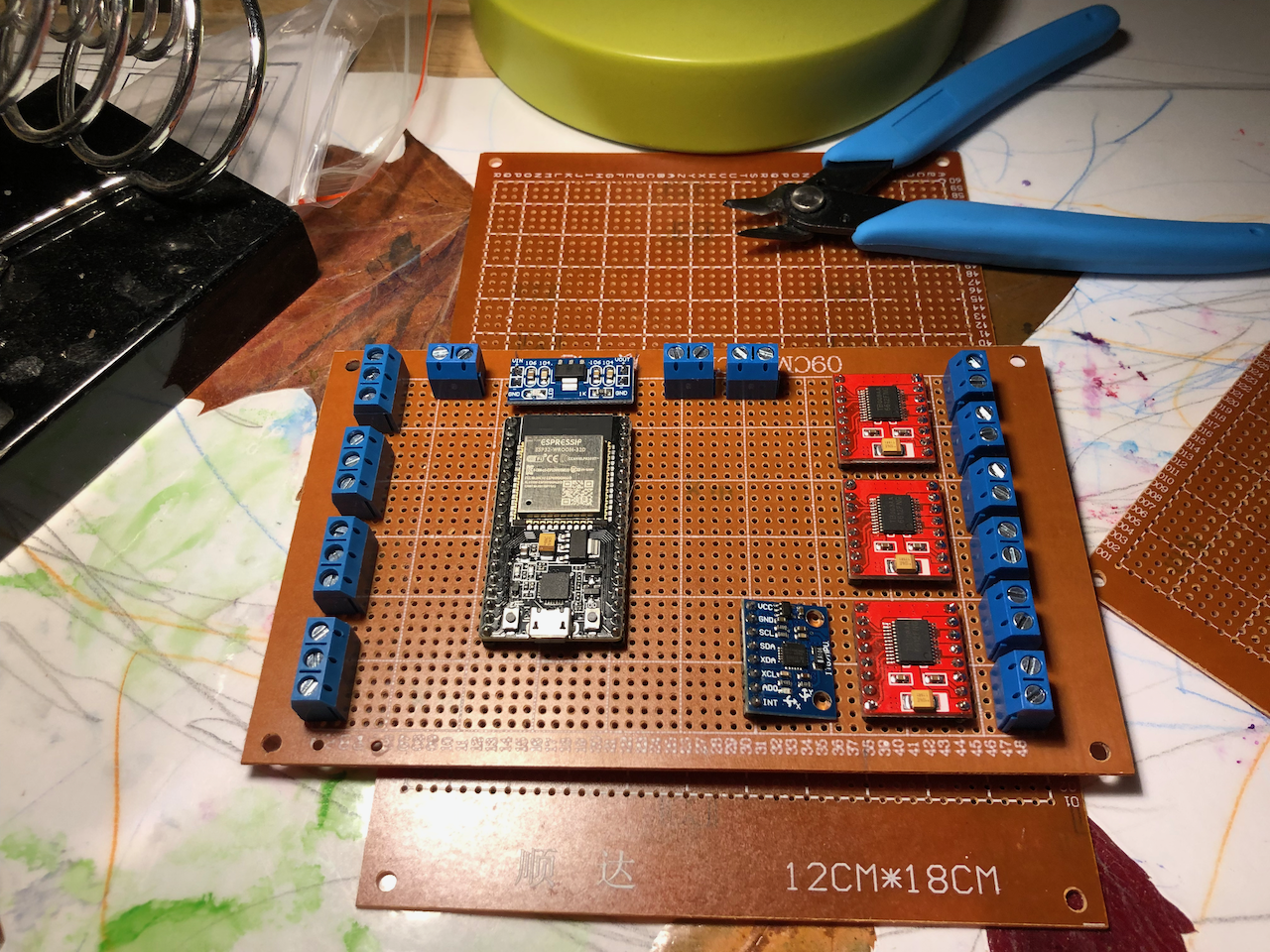

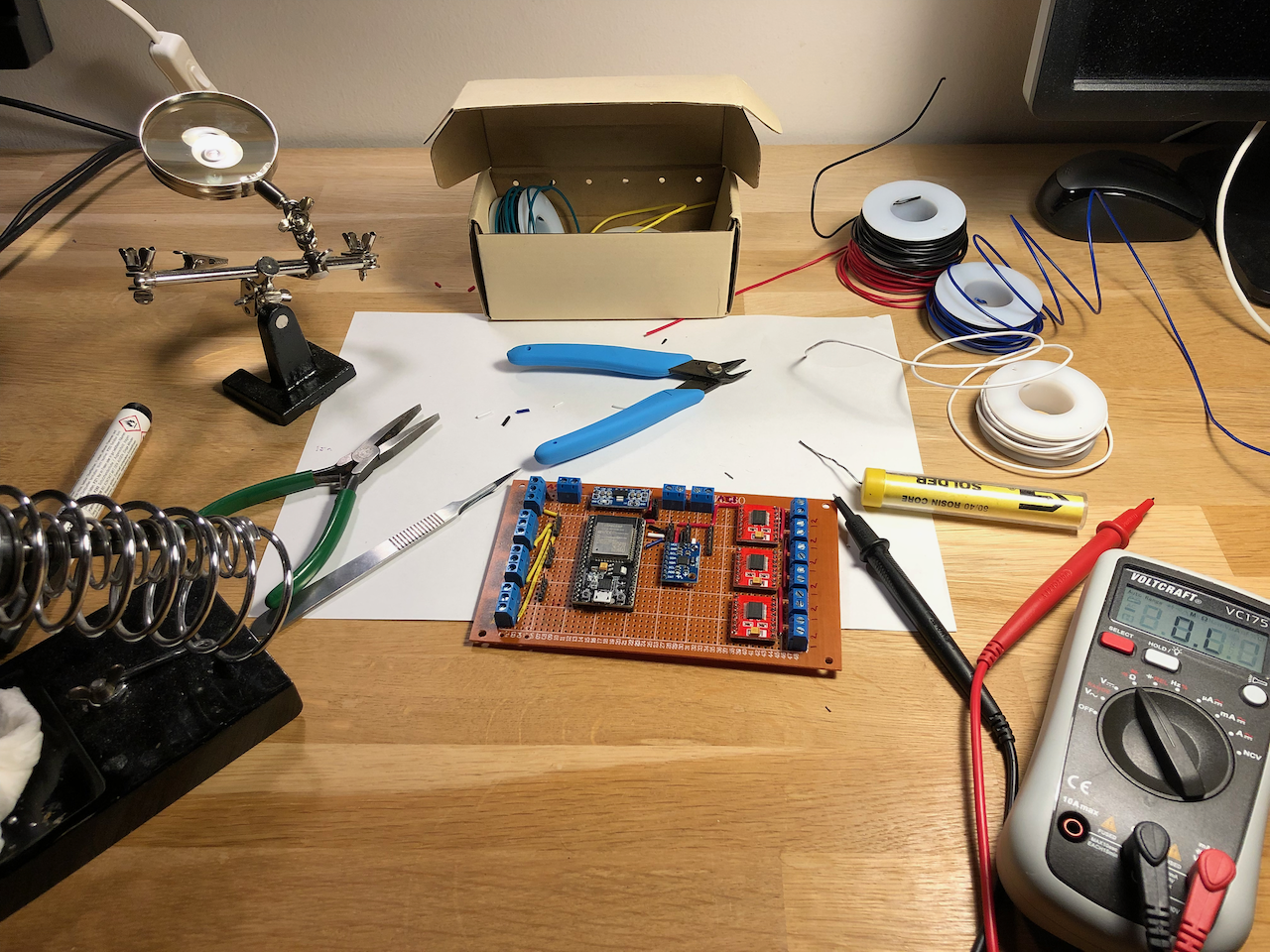

Electronics
Nov 2021

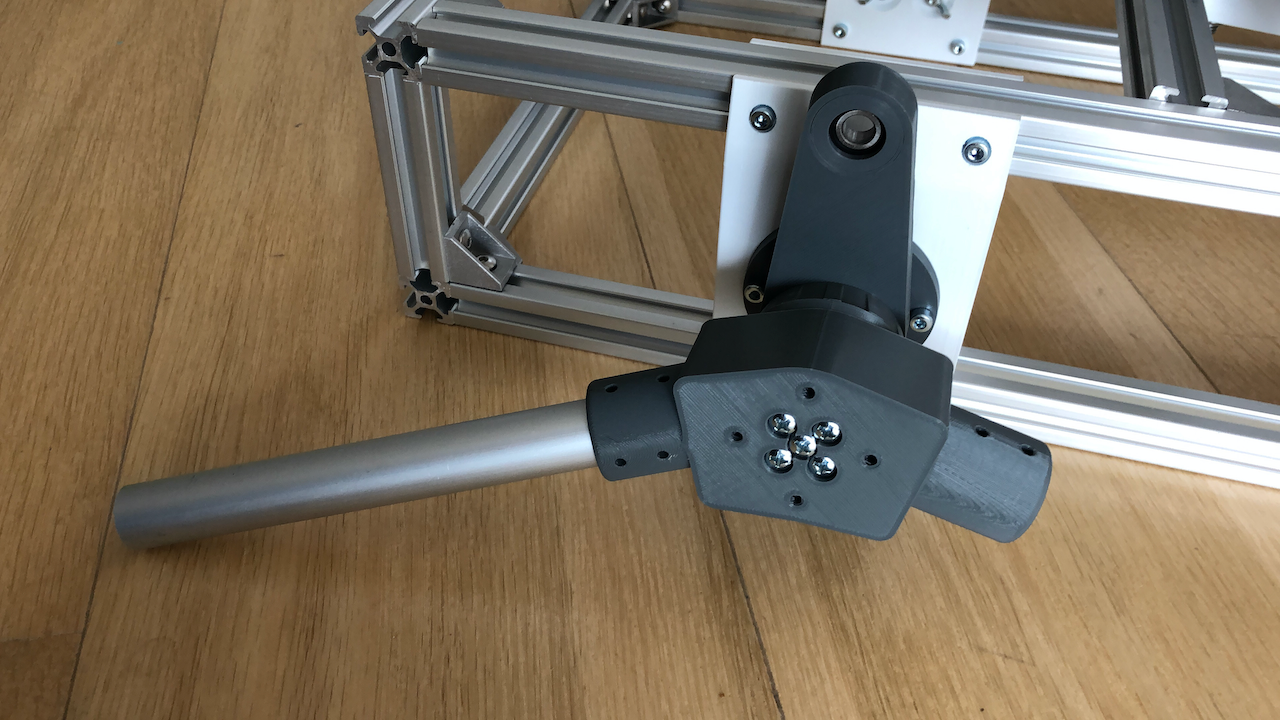

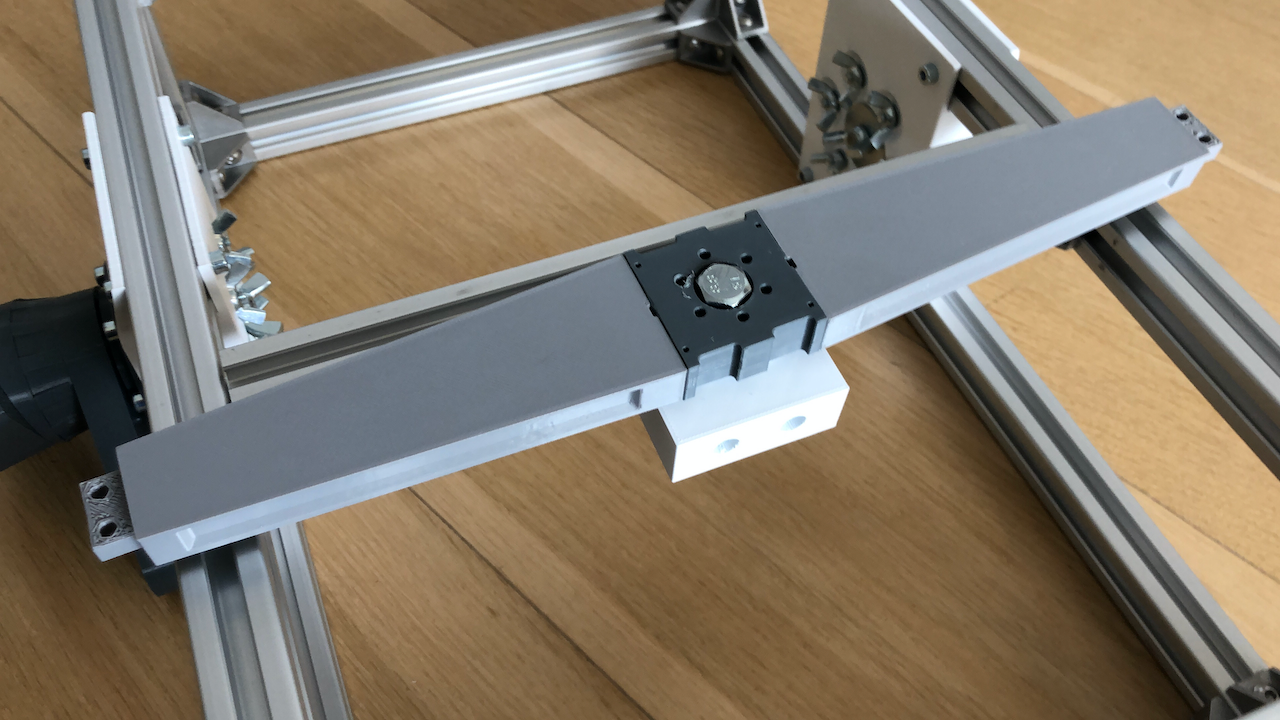

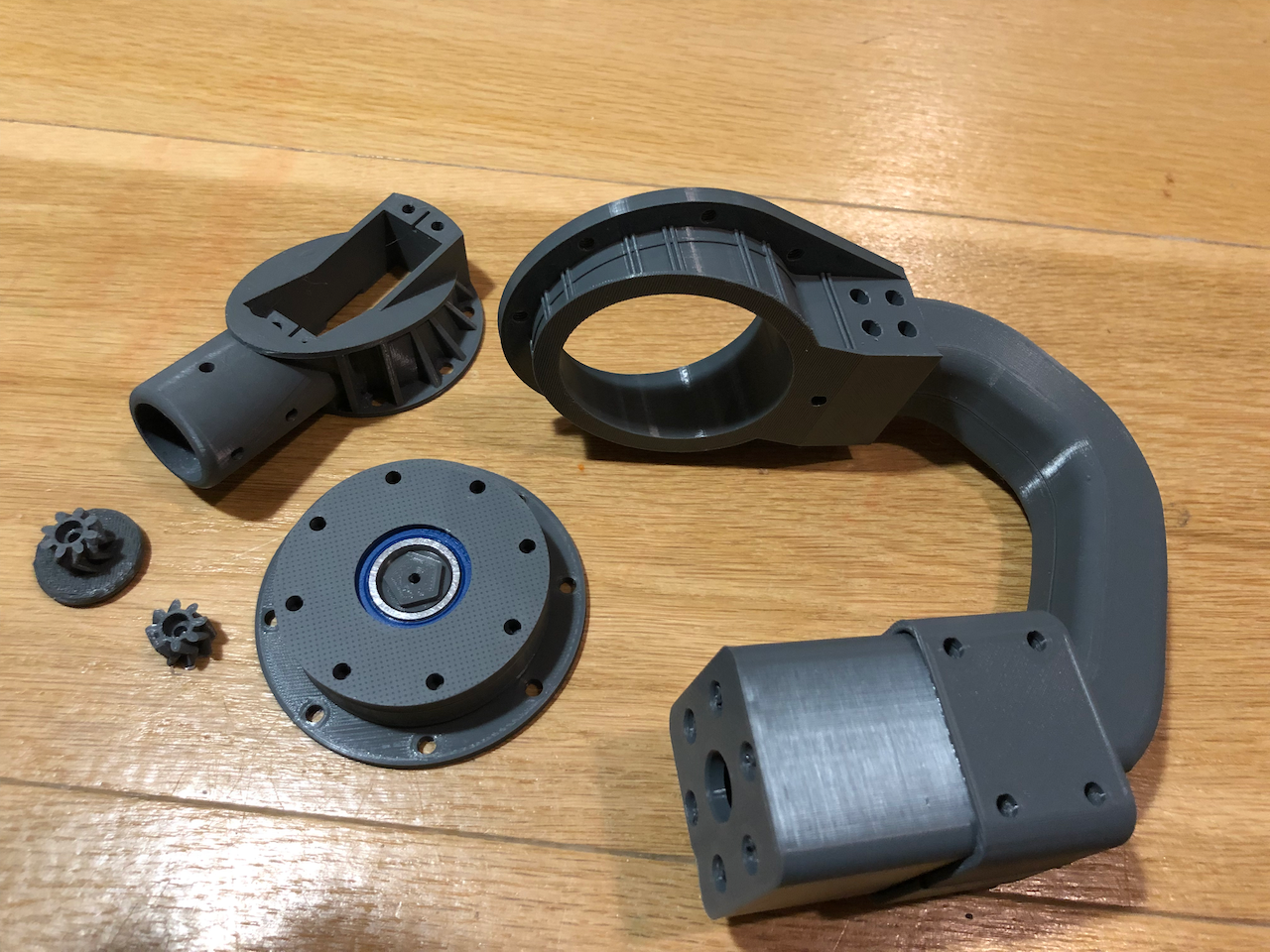

Rocker-bogie differential
Nov 2021

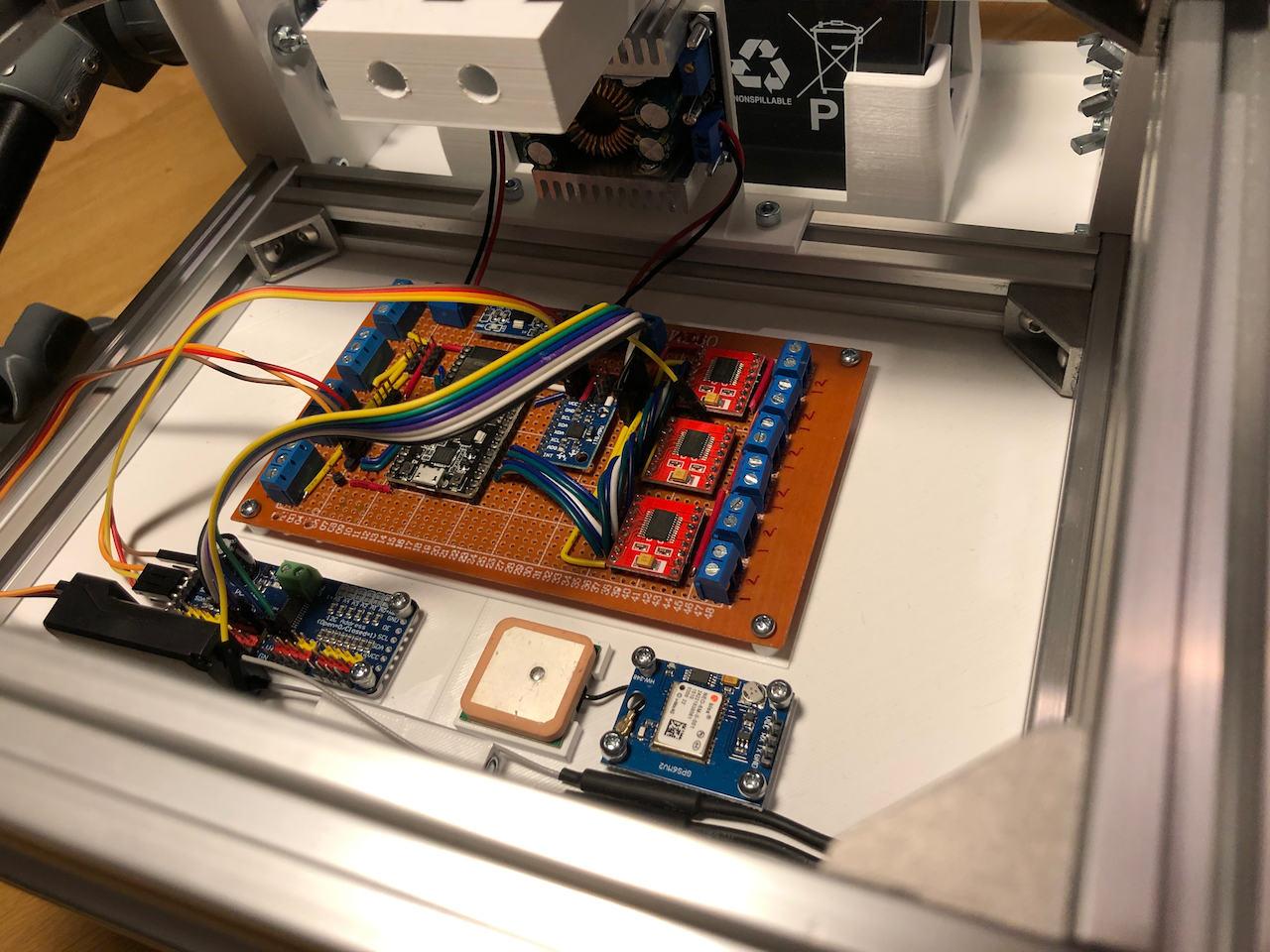

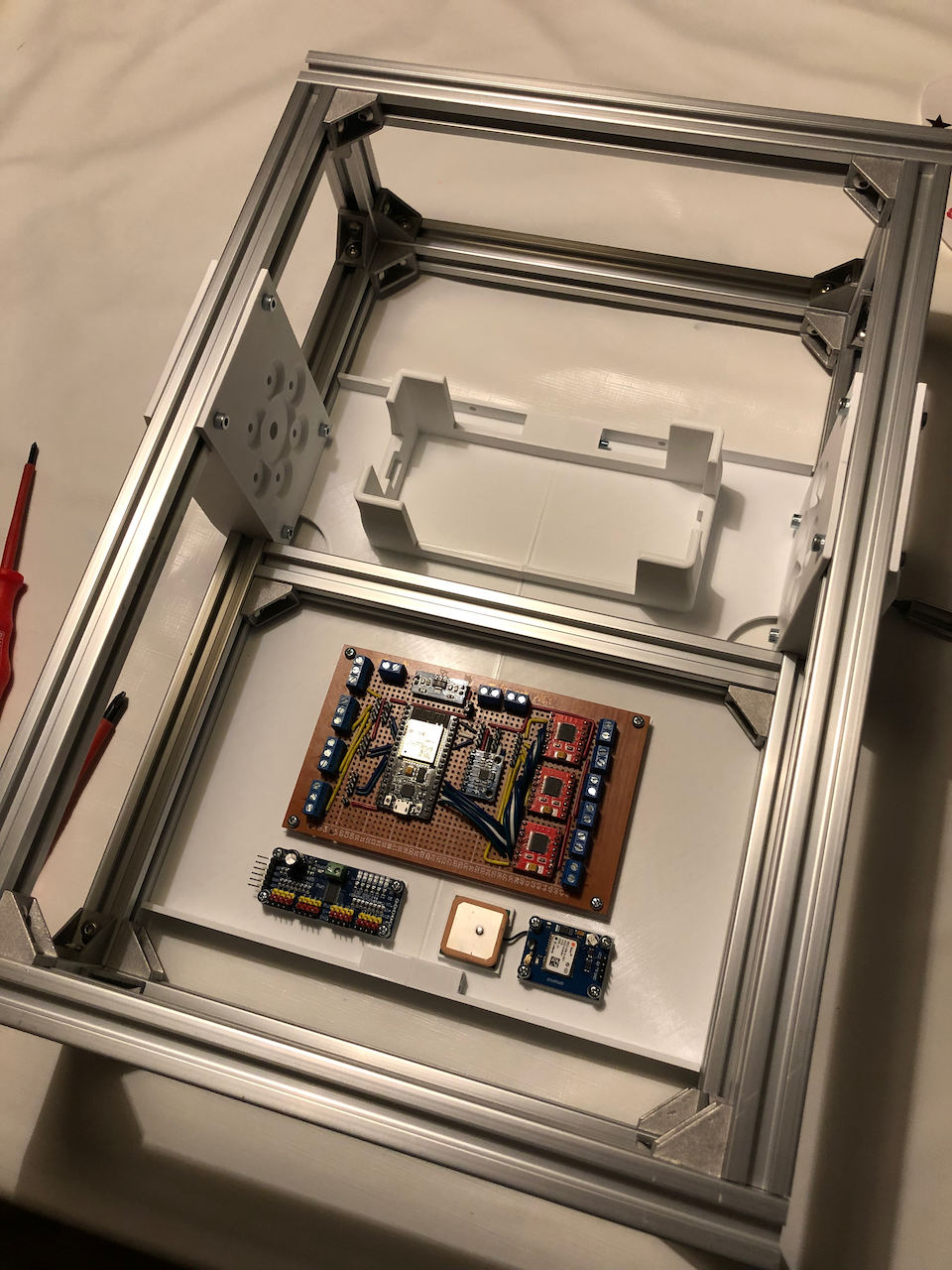

Bottom plate
Nov 2021

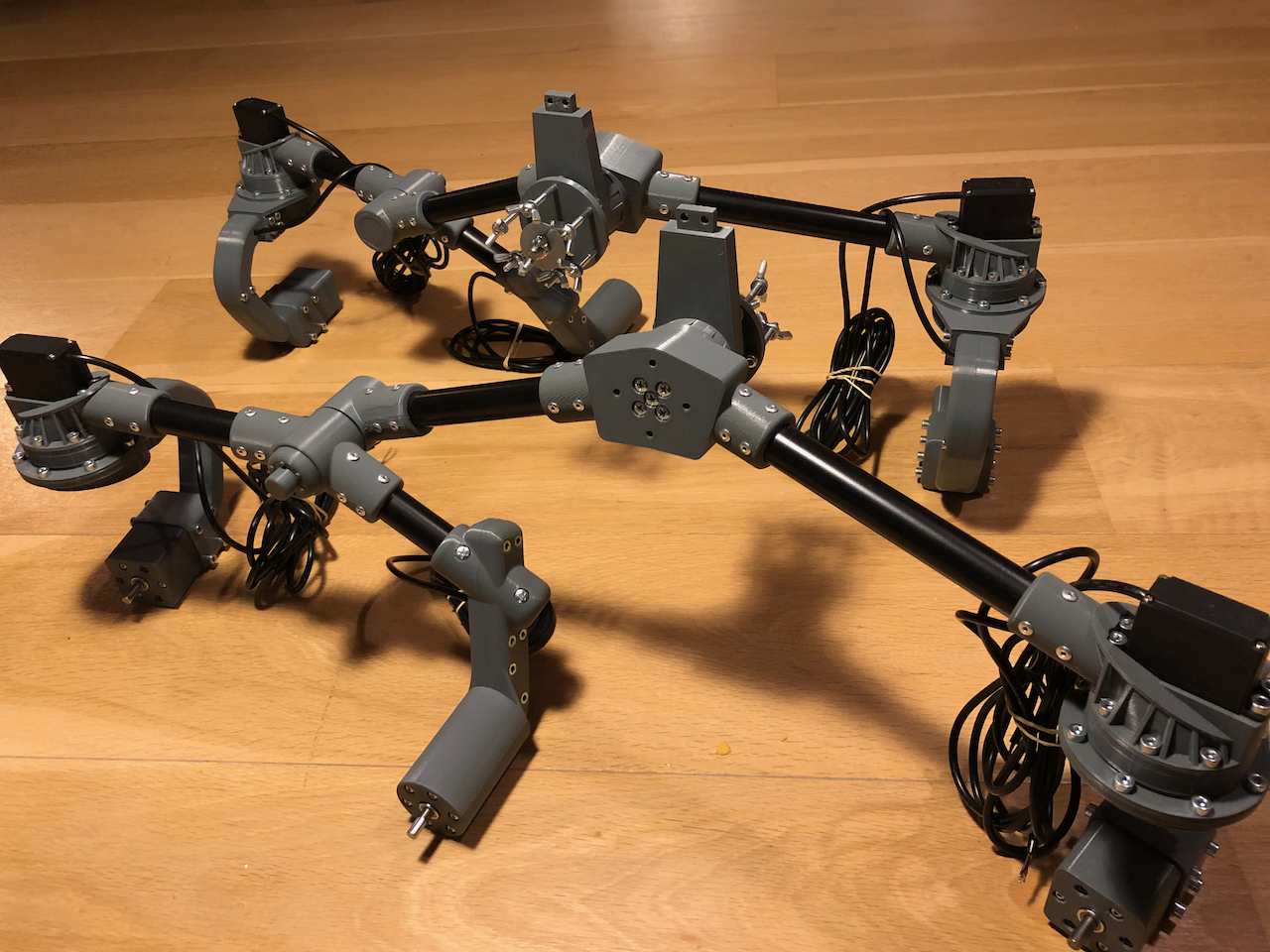

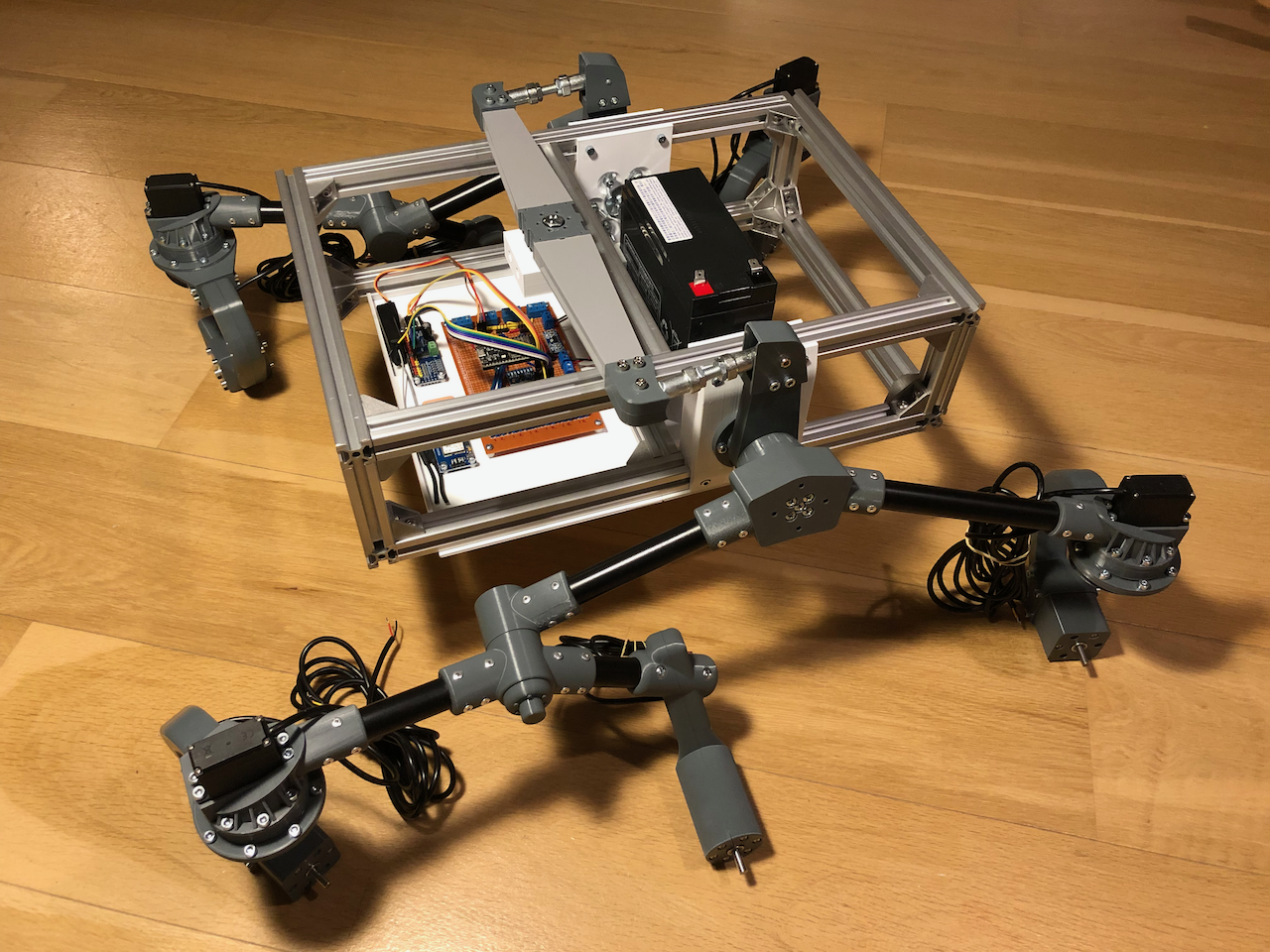

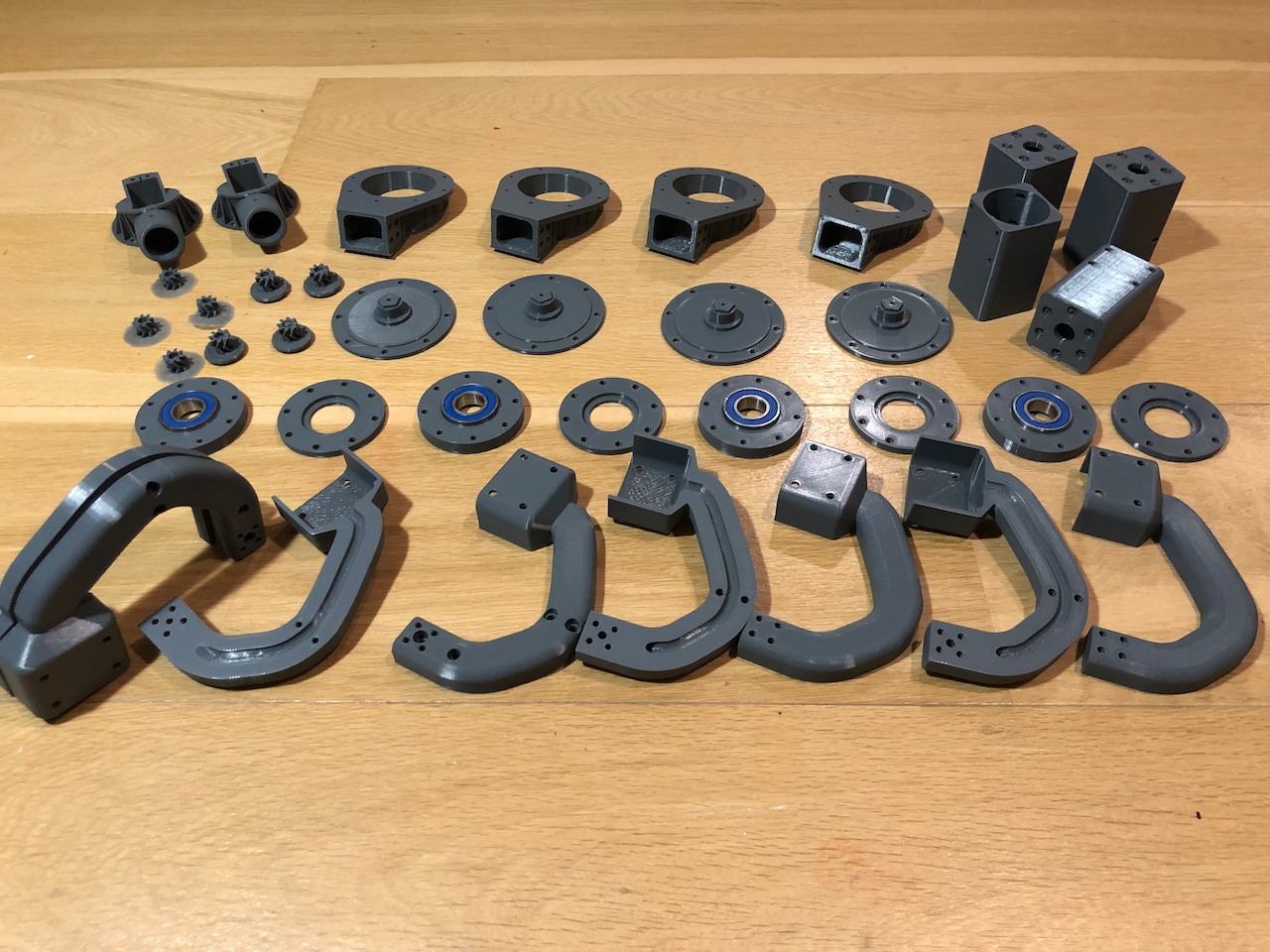

Rocker-bogie legs
Jan 2022

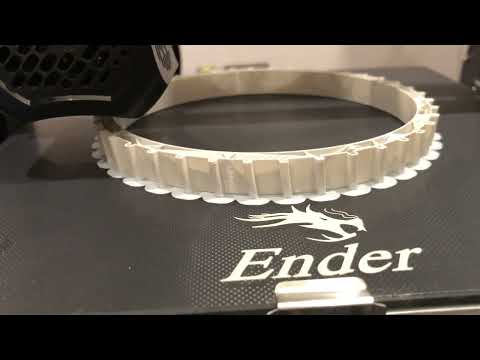

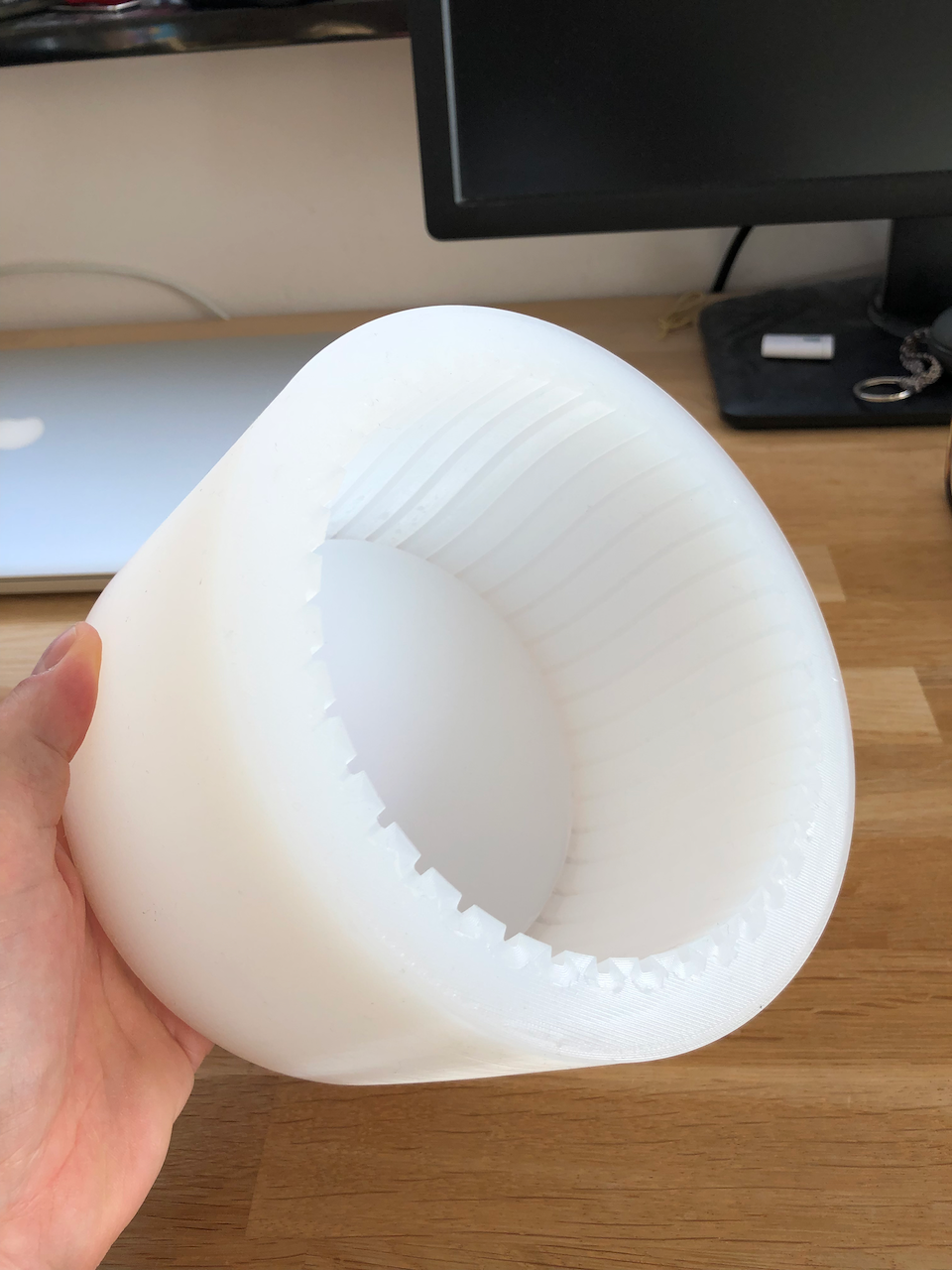

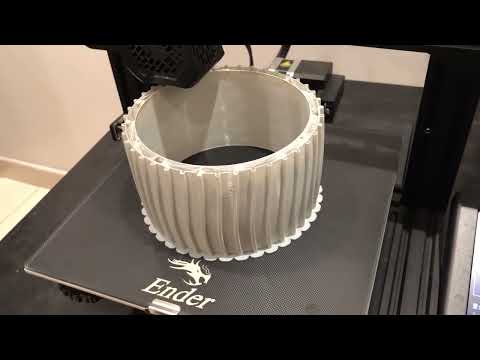

Printing the wheel mold
Jan 2022

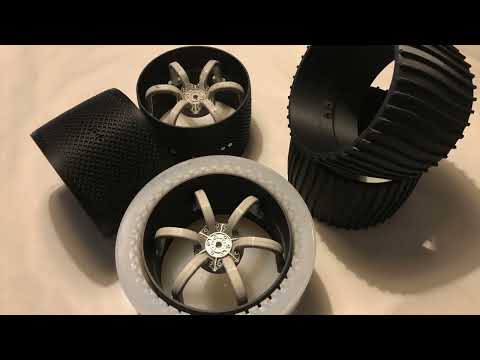

Casting the wheel silicone mold
Feb 2022

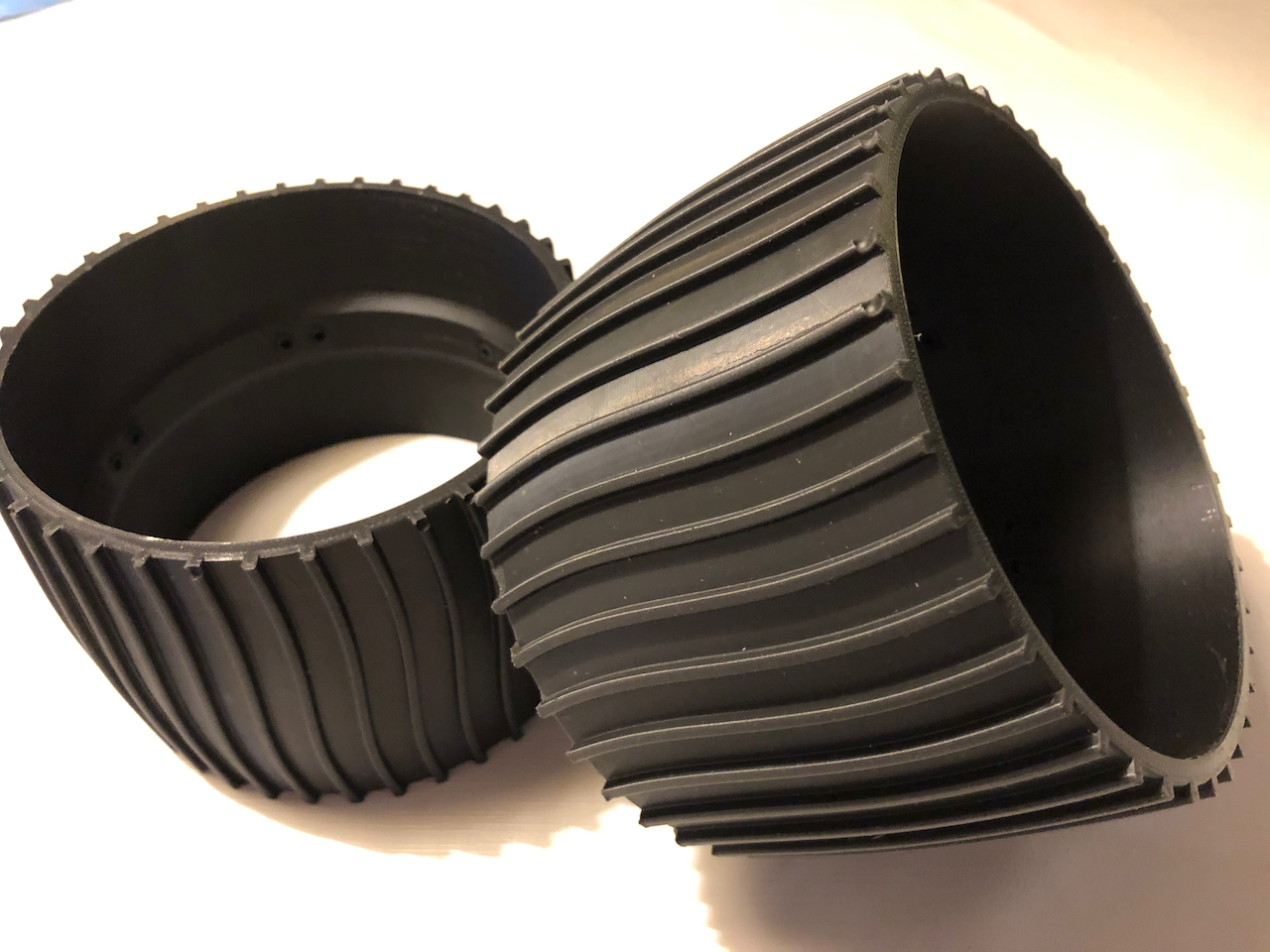

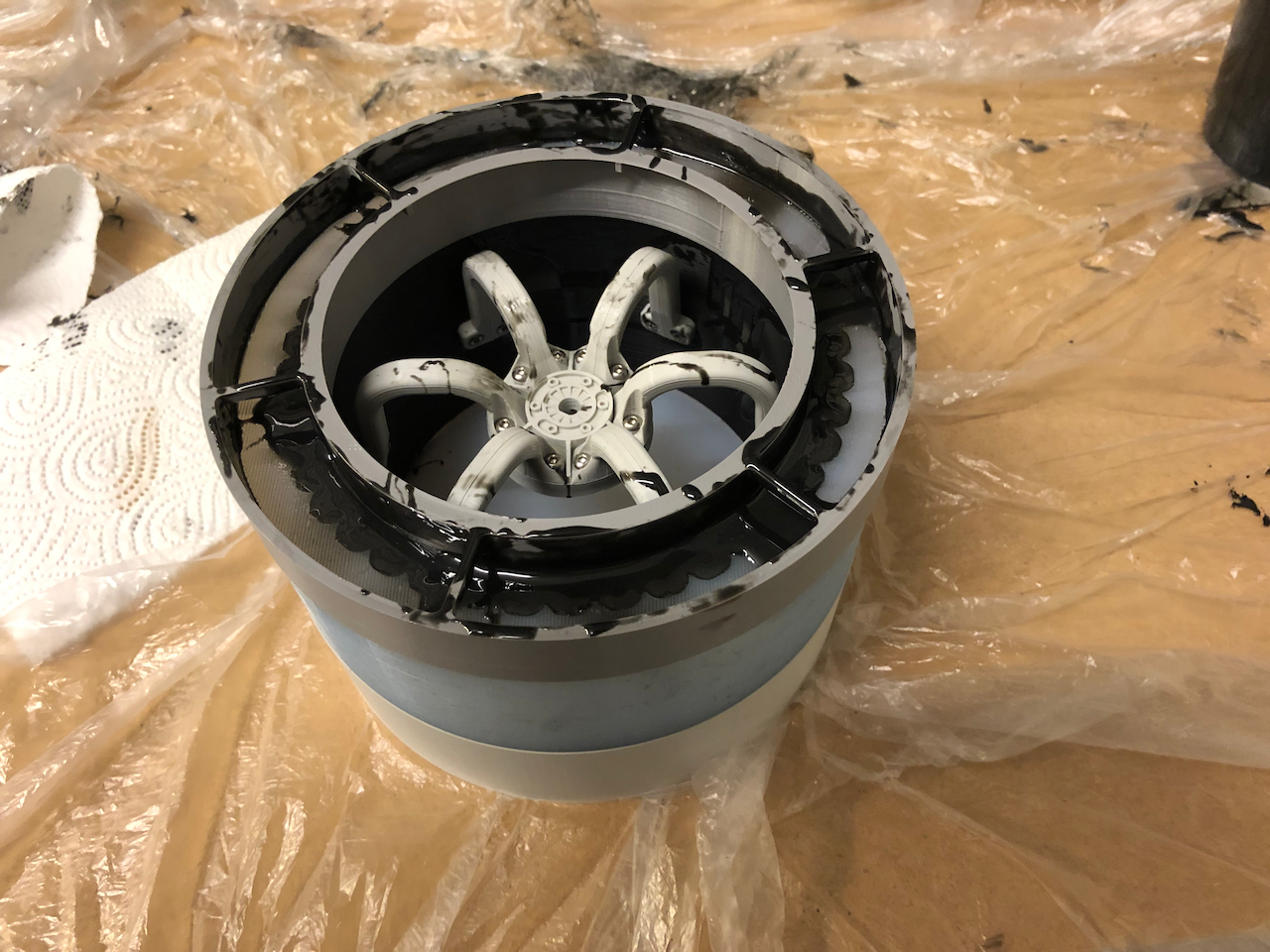

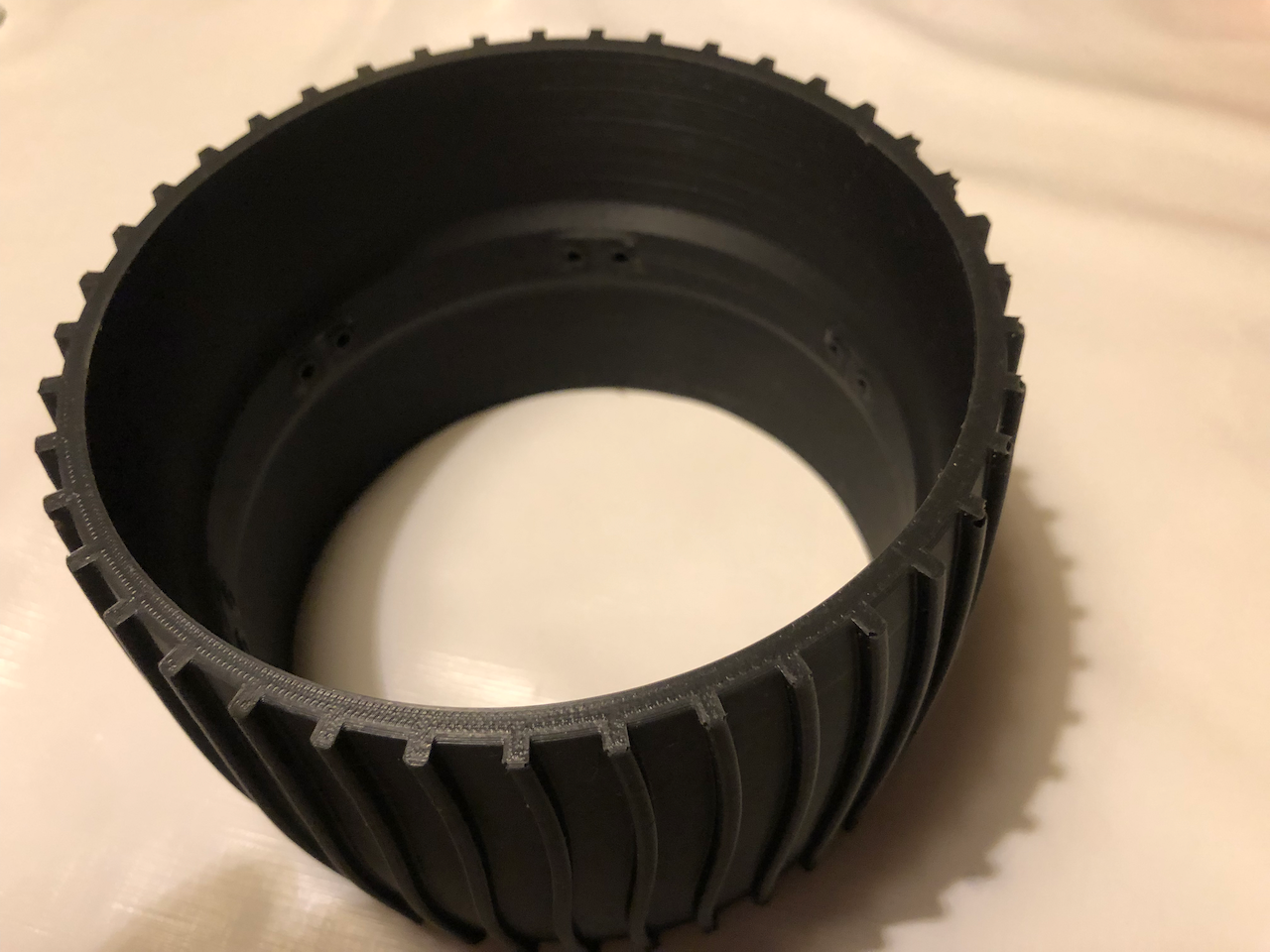

Wheel casting
Feb 2022

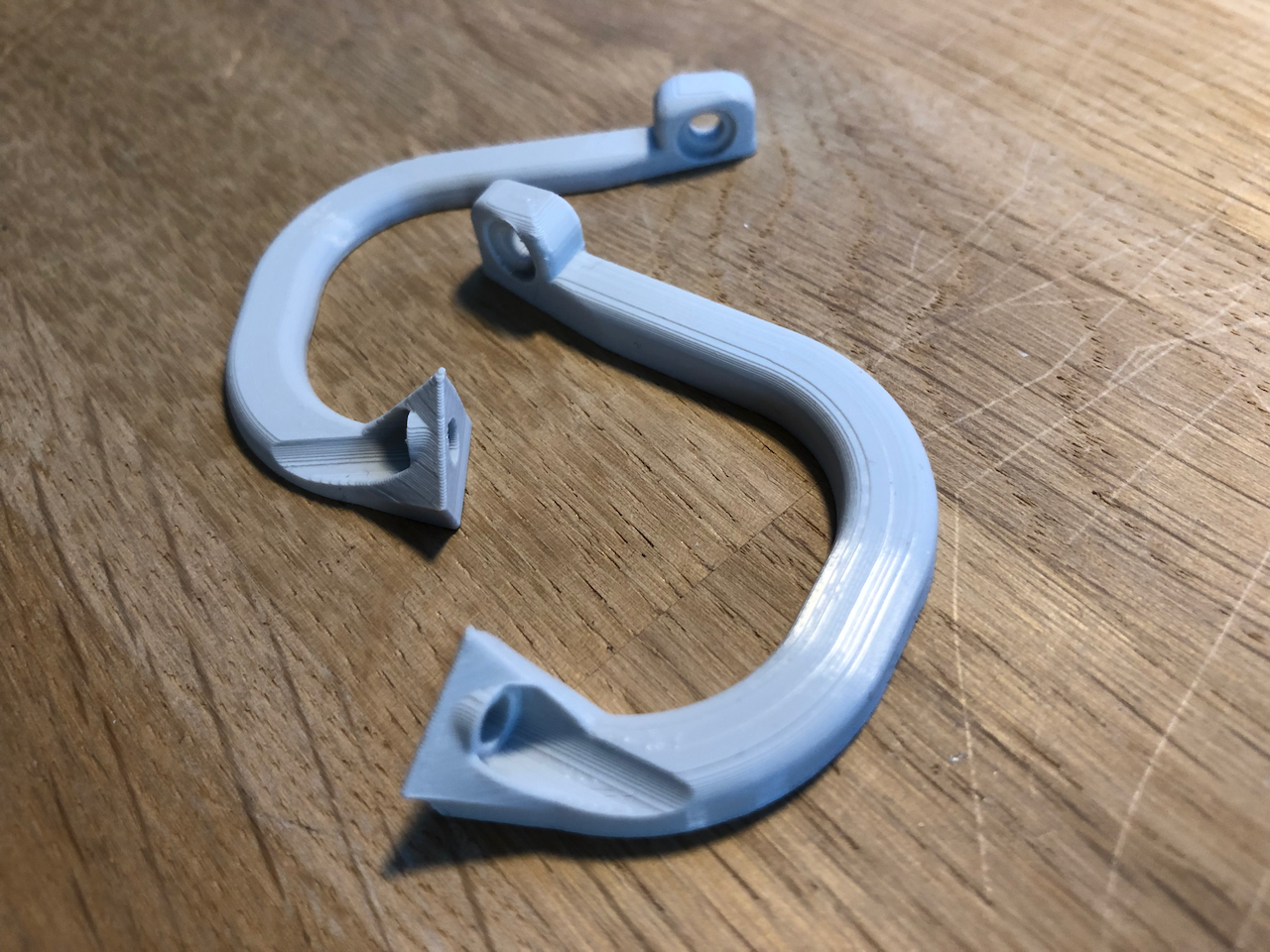

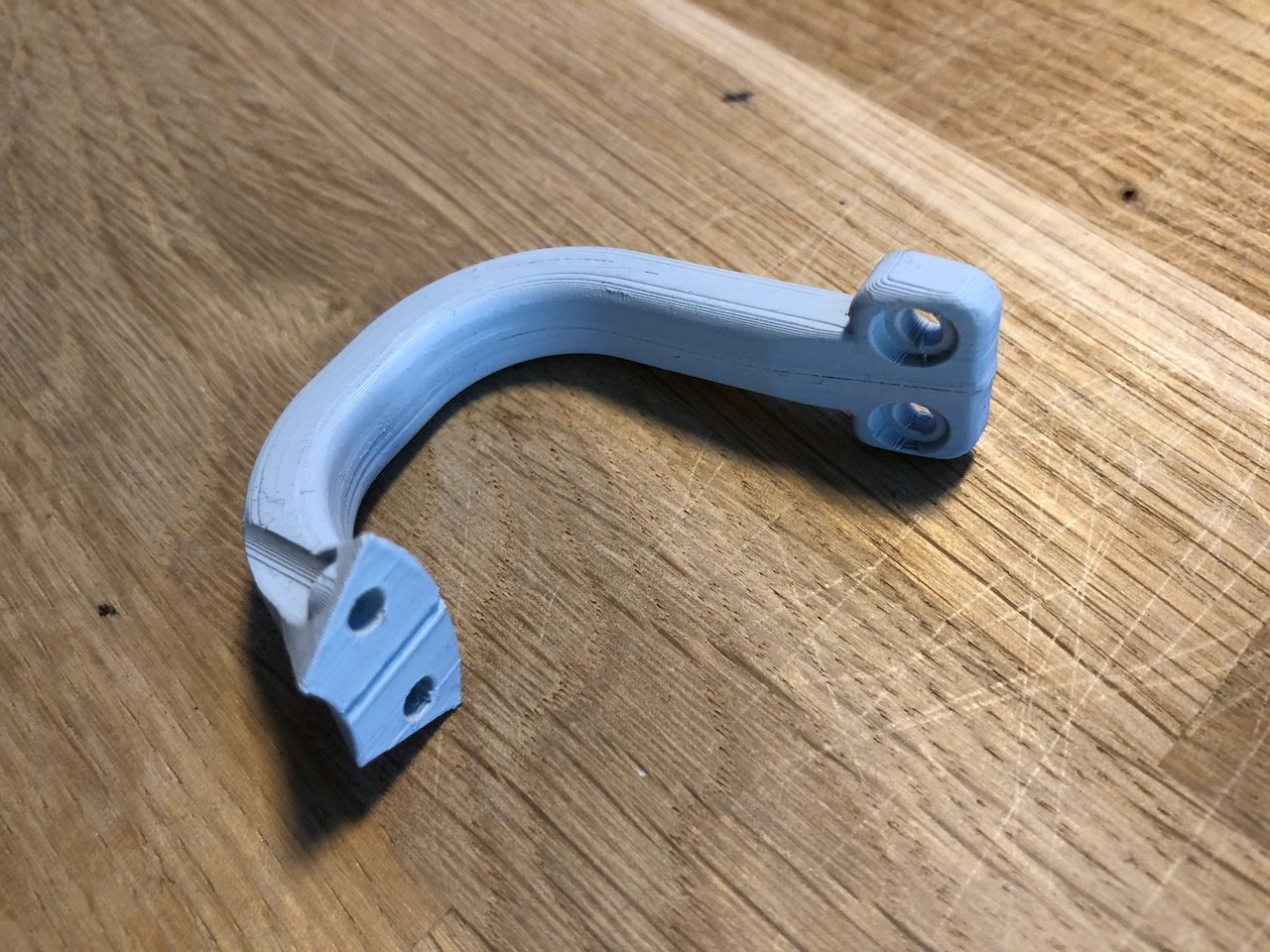

Wheel spokes
Jun 2022

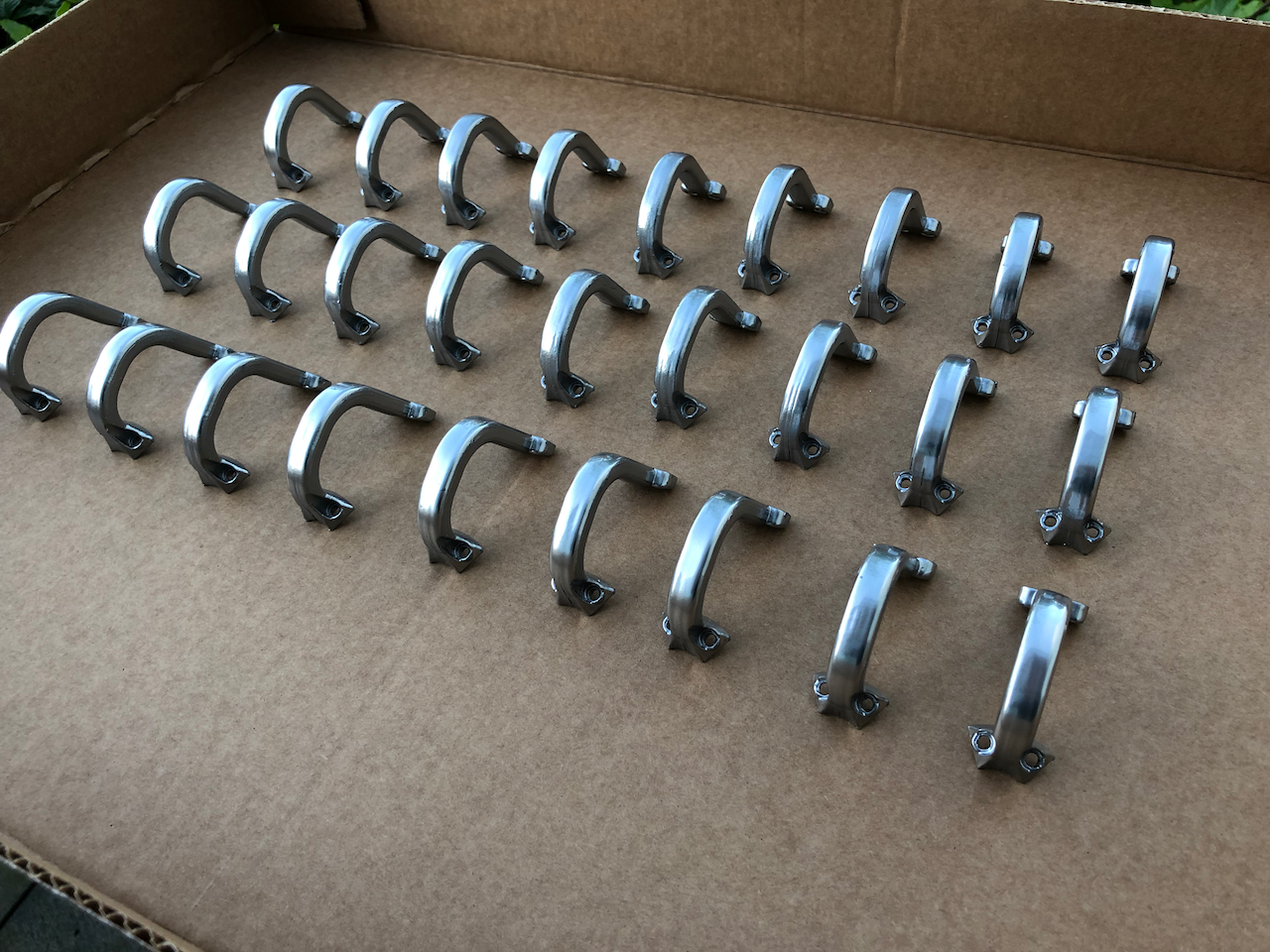

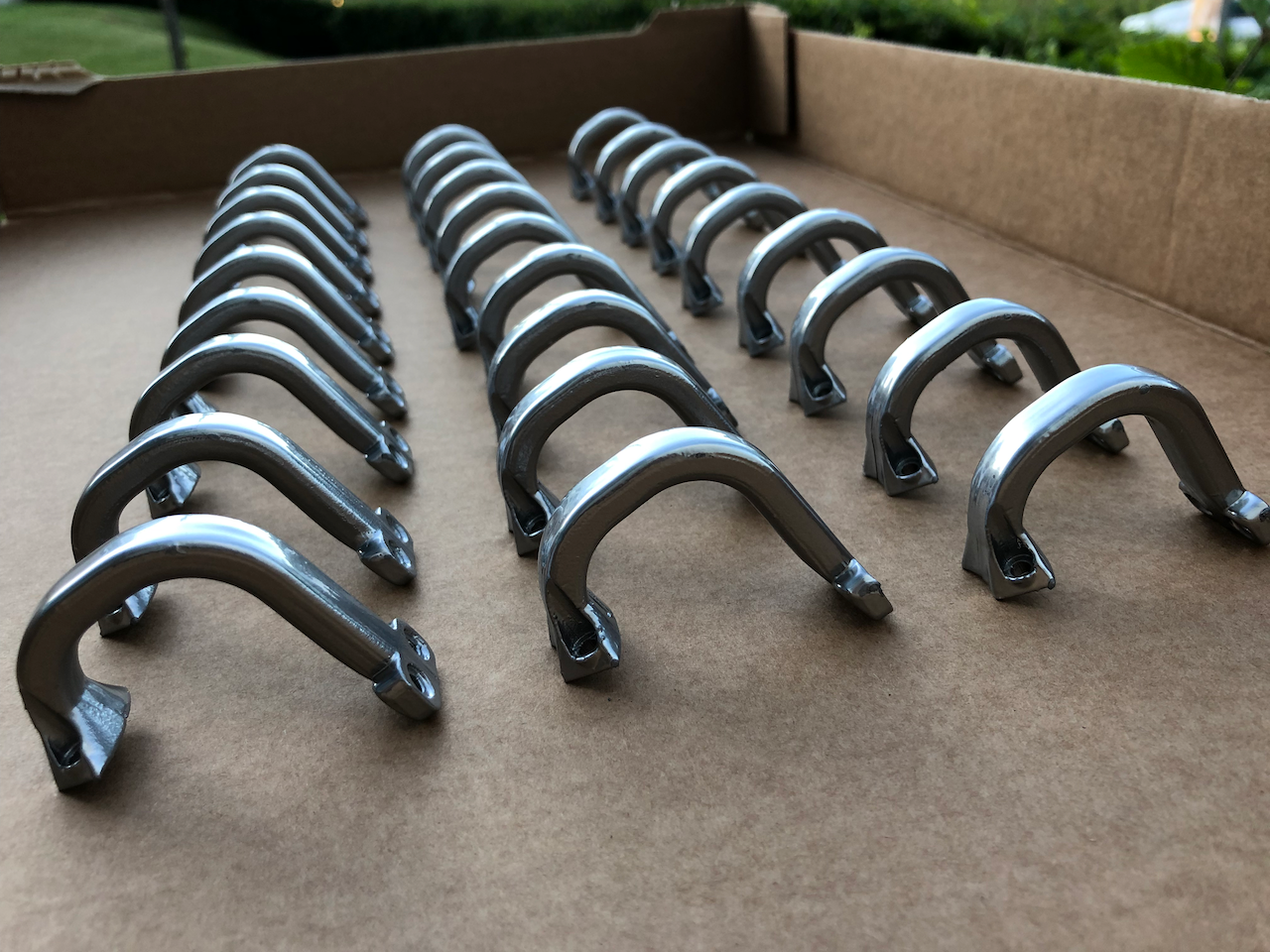

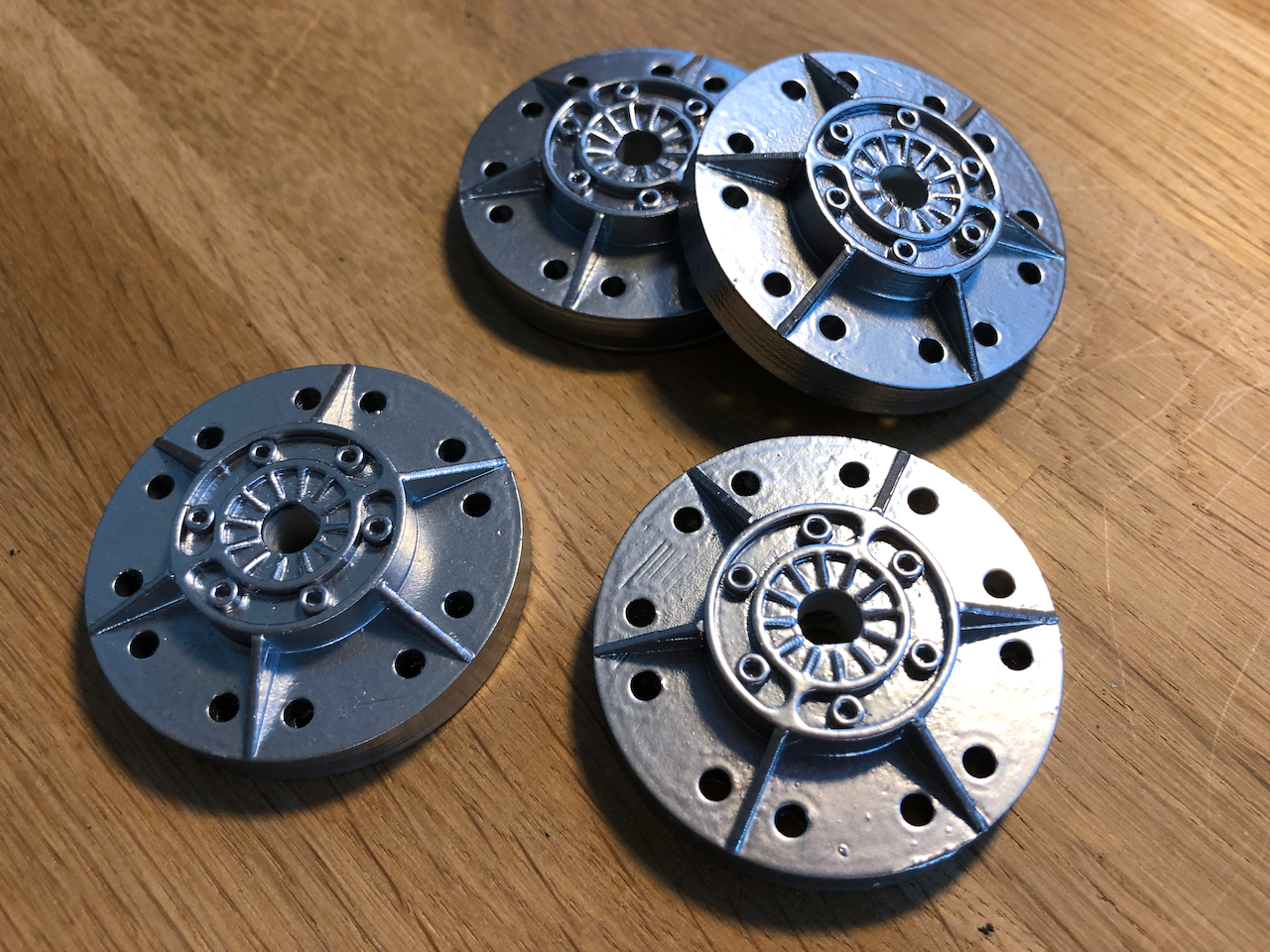

Spokes and hub paint job
Jun 2022

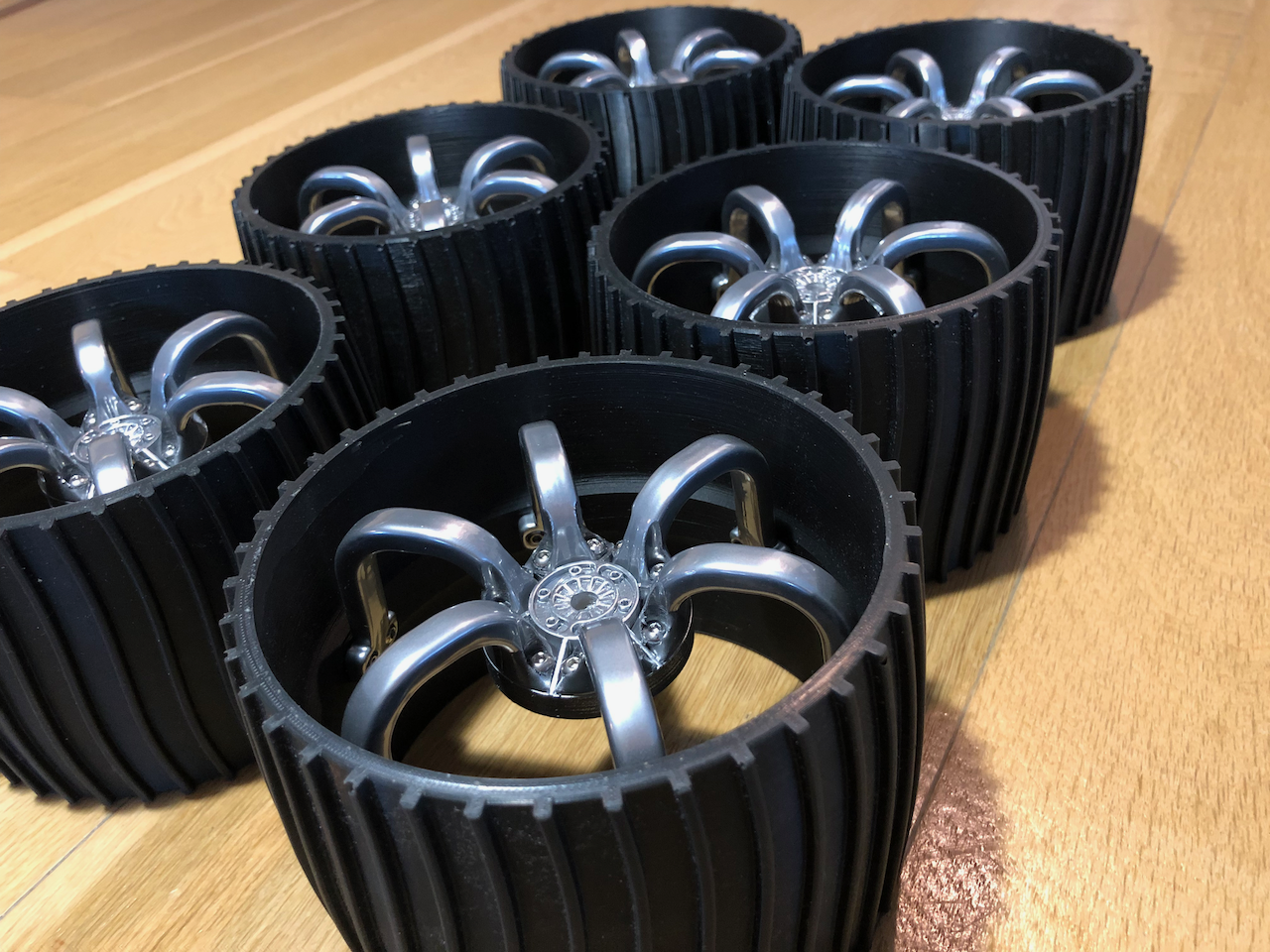

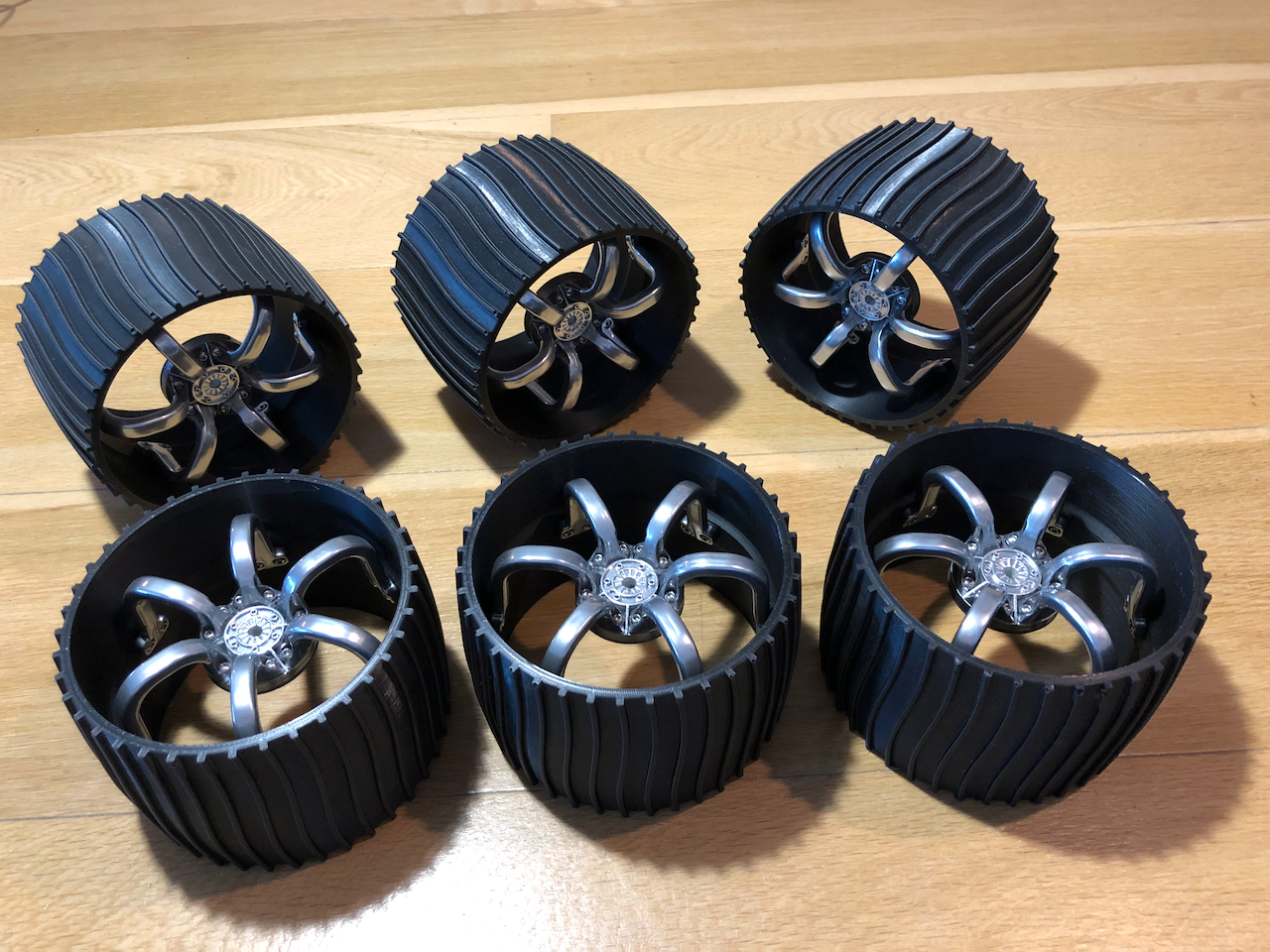

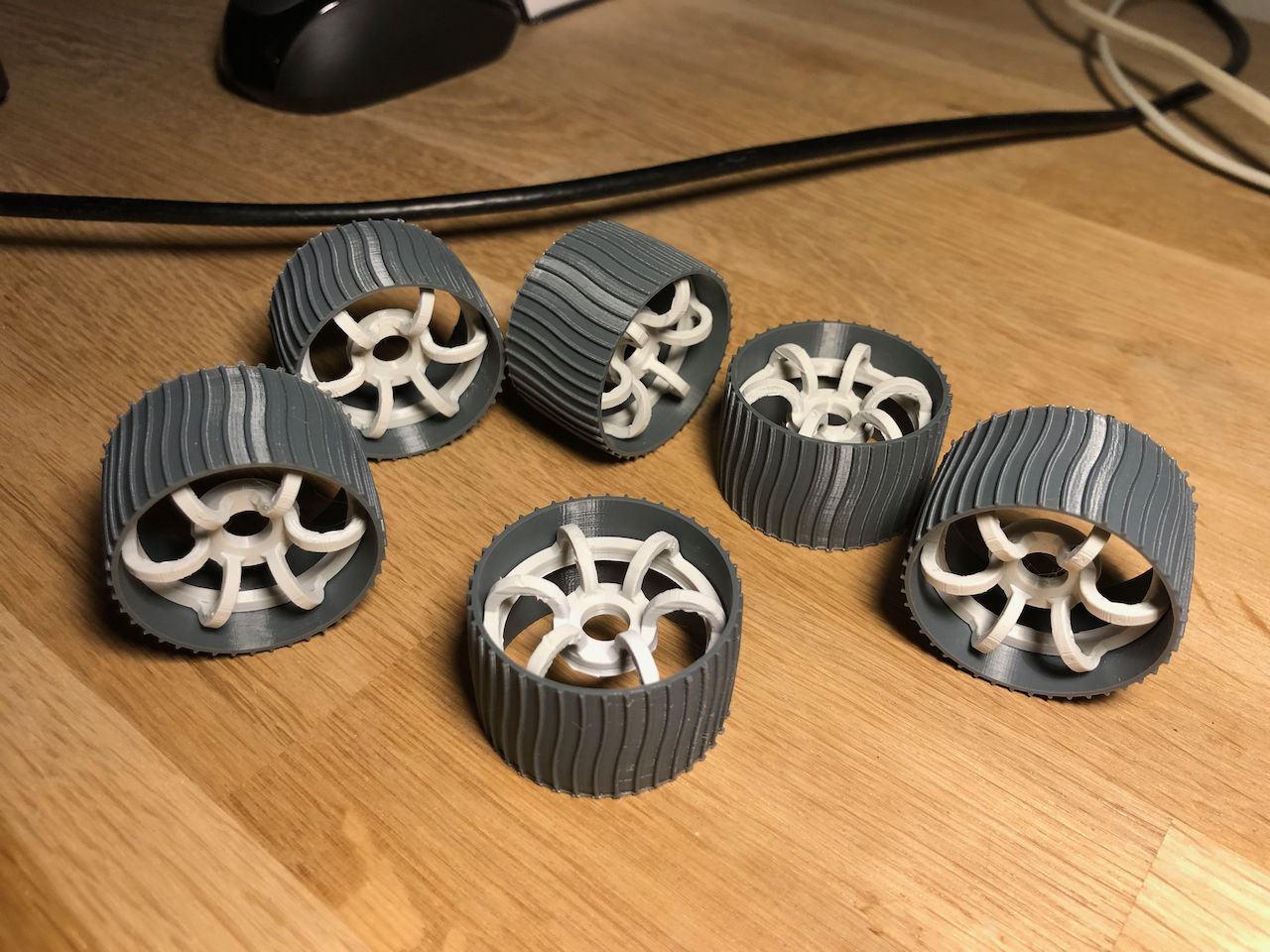

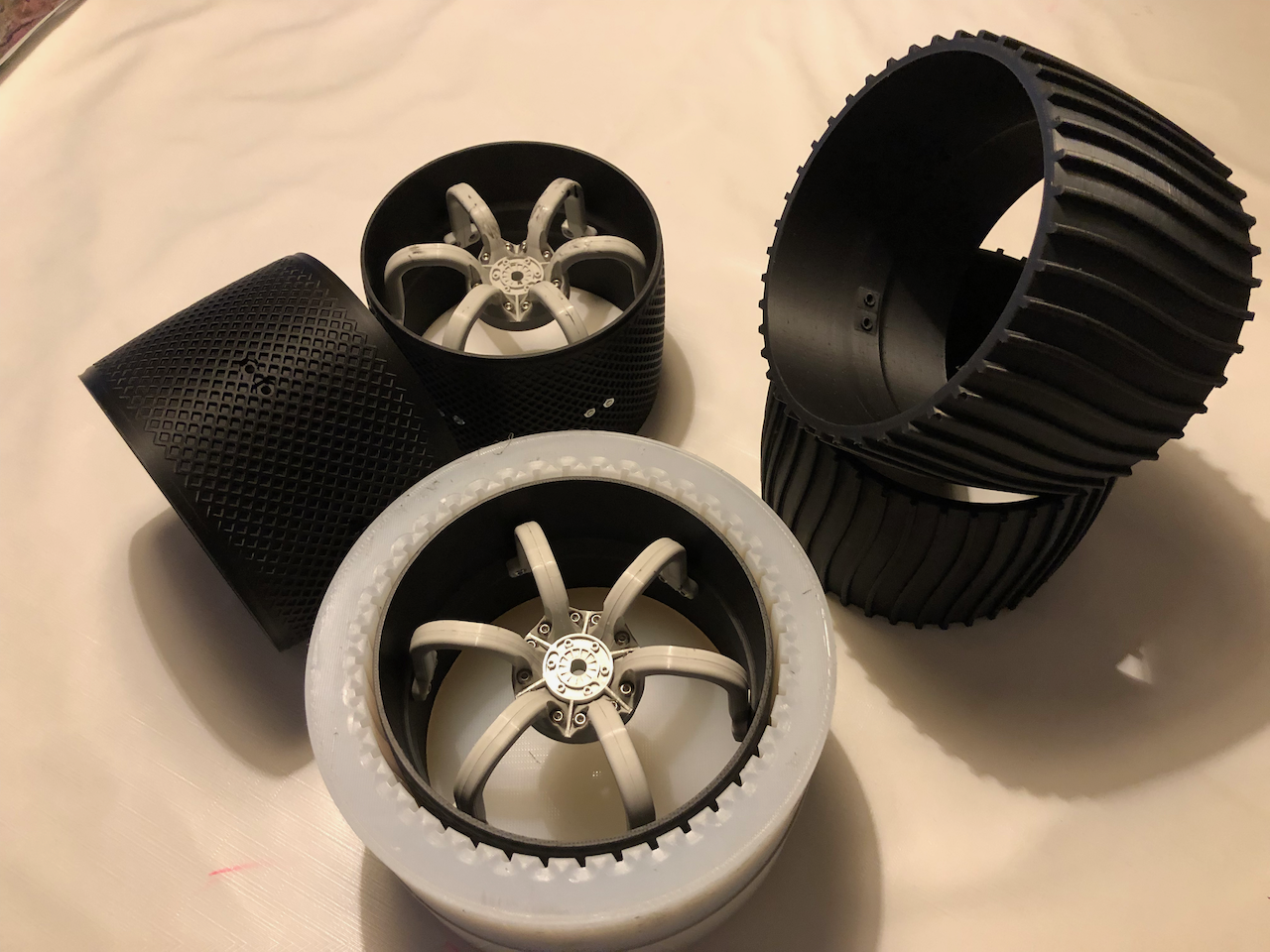

Wheel assembly
Aug 2022

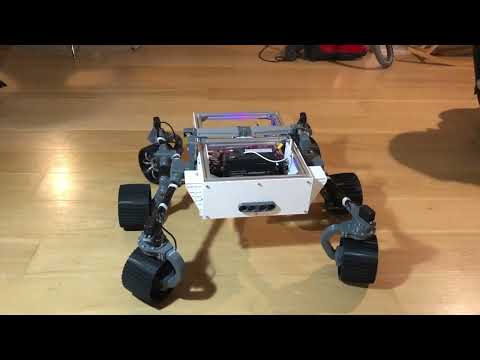

It's alive! (first test run)
May 2023

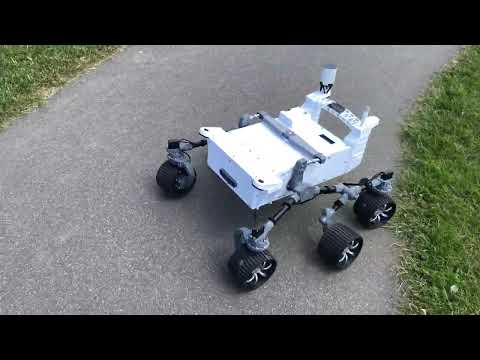

Outside test run
Electronics & Parts
ESP32
TB6612FNG motor drivers
6× DC gear motors
PCA9685 servo driver
4× MG996R servos
NEO-6M GPS
Ultrasonic sensor
MPU6050 IMU
FLYSKY radio controller
Fusion 360 (design)
Creality Ender-3 V2 (printer)
PLA plastic
